HEAT-SHRINKABLE RING TERMINALS(SHB SERIES)

MAXIMUM ELECTRIC CURRENT: SPEC 1.25 2 5.5 MAX CURRENT 19 27 48 WIRE RANGE A.W.G. mm² ITEM NO. STUD SIZE DIMENSION(mm) Q’TY d2 W F L E D d1 T 22-16 A.W.G.0.5-15 mm² SHB1.25-3.2 #4 3.2 5.6 6.3 29.1 18 4.8 1.7 0.7 1000 SHB1.25-3.7S #6 3.7 1000 SHB1.25-3.7L #6 3.7 6.3 6.4 1000 SHB1.25-4S […]

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.

SHRINK TEMP: 150℃

OPERATING TEMP: -40℃~+105℃

INSULATION MATERIAL: HIGH DENSITY PE.

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY

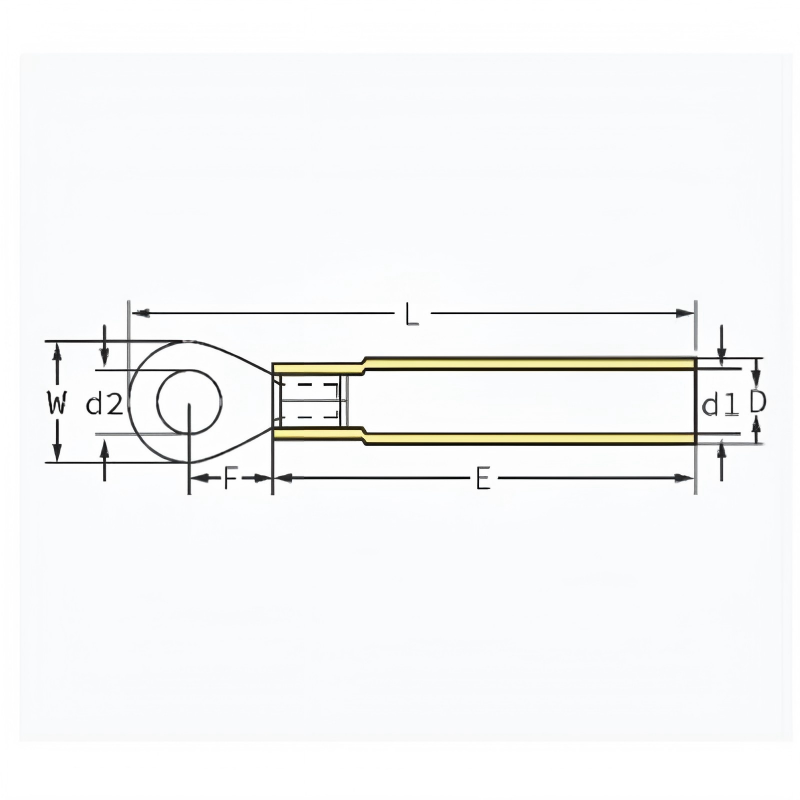

WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G.0.5-15 mm²	SHB1.25-3.2	#4	3.2	5.6	6.3	29.1	18	4.8	1.7	0.7	1000
	SHB1.25-3.7S	#6	3.7	5.6	6.3						1000
	SHB1.25-3.7L	#6	3.7	6.3	6.4						1000
	SHB1.25-4S	#8	4.3	6.4	6.5						1000
	SHB1.25-4M	#8	4.3	7.2	6.5						1000
	SHB1.25-4L	#8	4.3	7.9	6						1000
	SHB1.25-5S	#10	5.3	8	6.5						1000
	SHB1.25-5L	#10	5.3	9.4	6.3						1000
	SHB1.25-6S	2026-01-04 00:00:00	6.4	9.5	6.4						1000
	SHB1.25-6L	2026-01-04 00:00:00	6.4	11.8	10.4	34.5					1000
	SHB1.25-8	2026-05-16 00:00:00	8.4	12	10.8	33.3					1000
16-14 A.W.G.1.5-2.5 mm²	SHB2-3.2	#4	3.2	5.7	6.5	29.1	18	5.8	2.3	0.8	1000
	SHB2-3.7S	#6	3.7	5.7	6.5						1000
	SHB2-3.7L	#6	3.7	6.3	6.4						1000
	SHB2-4S	#8	4.3	6.4	6.5						1000
	SHB2-4M	#8	4.3	7.1	6.3						1000
	SHB2-4L	#8	4.3	7.9	6						1000
	SHB2-5S	#10	5.3	8	6.5						1000
	SHB2-5L	#10	5.3	9.4	6.3						1000
	SHB2-6S	2026-01-04 00:00:00	6.4	9.5	6.4						1000
	SHB2-6L	2026-01-04 00:00:00	6.4	11.8	10.4	34.5					1000
	SHB2-8	2026-05-16 00:00:00	8.4	12	10.8	33.3					1000
12-10 A.W.G.4-6 mm²	SHB5.5-3.7	#6	3.7	7.9	7	33.5	21	6.8	3.4	1	1000
	SHB5.5-4SS	#8	4.3	7.2	7.5	32.6					1000
	SHB5.5-4S	#8	4.3	8.3	7.3	33.7					1000
	SHB5.5-4L	#8	4.3	9	7	33.2					1000
	SHB5.5-5	#10 5.3		8.7	6.8	32.8					1000
	SHB5.5-6S	1/4 6.4		8.7	7.3	32.8					1000
	SHB5.5-6L	1/4 6.4		12	11	38.8					1000
	SHB5.5-8	5/16 8.4		13.9	11.3	38.8					1000
