HEAT SHRINKABLE-FULLY(DOUBLE CRIMP)FEMALE TERMINALS(FDFHD SERIES)

FDFHD Series heat shrink female terminals feature double crimping, copper construction, 600V rating, and sealed insulation for reliable wire connections.

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.
SHRINK TEMP: 150°℃

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

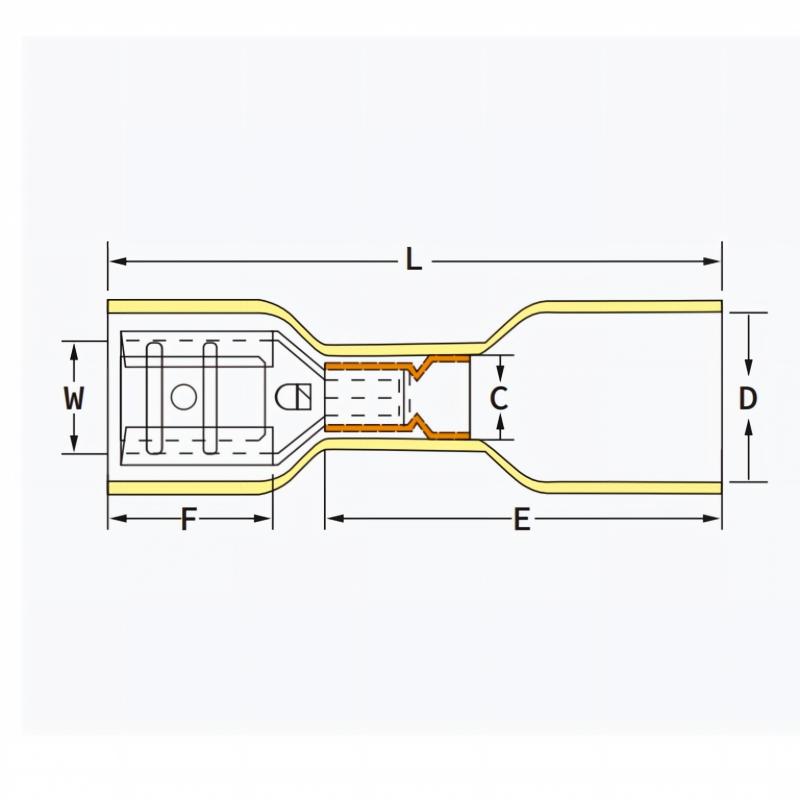

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	FDFHD1.25-110(5)	0.5×2.8	5	6.4	27.5	18	6.5	0.3	1000
	FDFHD1.25-110(8)	0.8×2.8	5	6.4	27.5			0.3	1000
	FDFHD1.25-187(5)	0.5×4.75	5	6.4	27.5.5			0.35	1000
	FDFHD1.25-187(8)	0.8×4.75	5	6.4	27.5.5			0.35	1000
	FDFHD1.25-250	0.8×6.35	6.6	7.5	30			0.4	1000
16-14 A.W.G. 15-2.5 mm²	FDFHD2-110(5)	0.5×2.8	3.2	6.5	27.5	18	6.5	0.3	1000
	FDFHD2-110(8)	0.8×2.8	3.2	6.5	27.5			0.3	1000
	FDFHD2-187(5)	0.5×4.75	5	6.4	27.5			0.35	1000
	FDFHD2-187(8)	0.8×4.75	5	6.4	27.5			0.35	1000
	FDFHD2-250	0.8×6.35	6.6	7.5	30			0.4	1000
12-10 A.W.G. 4-6 mm²	FDFHD5-250	0.8×6.35	6.6	7.5	31.8	20	7.5	0.4	500
