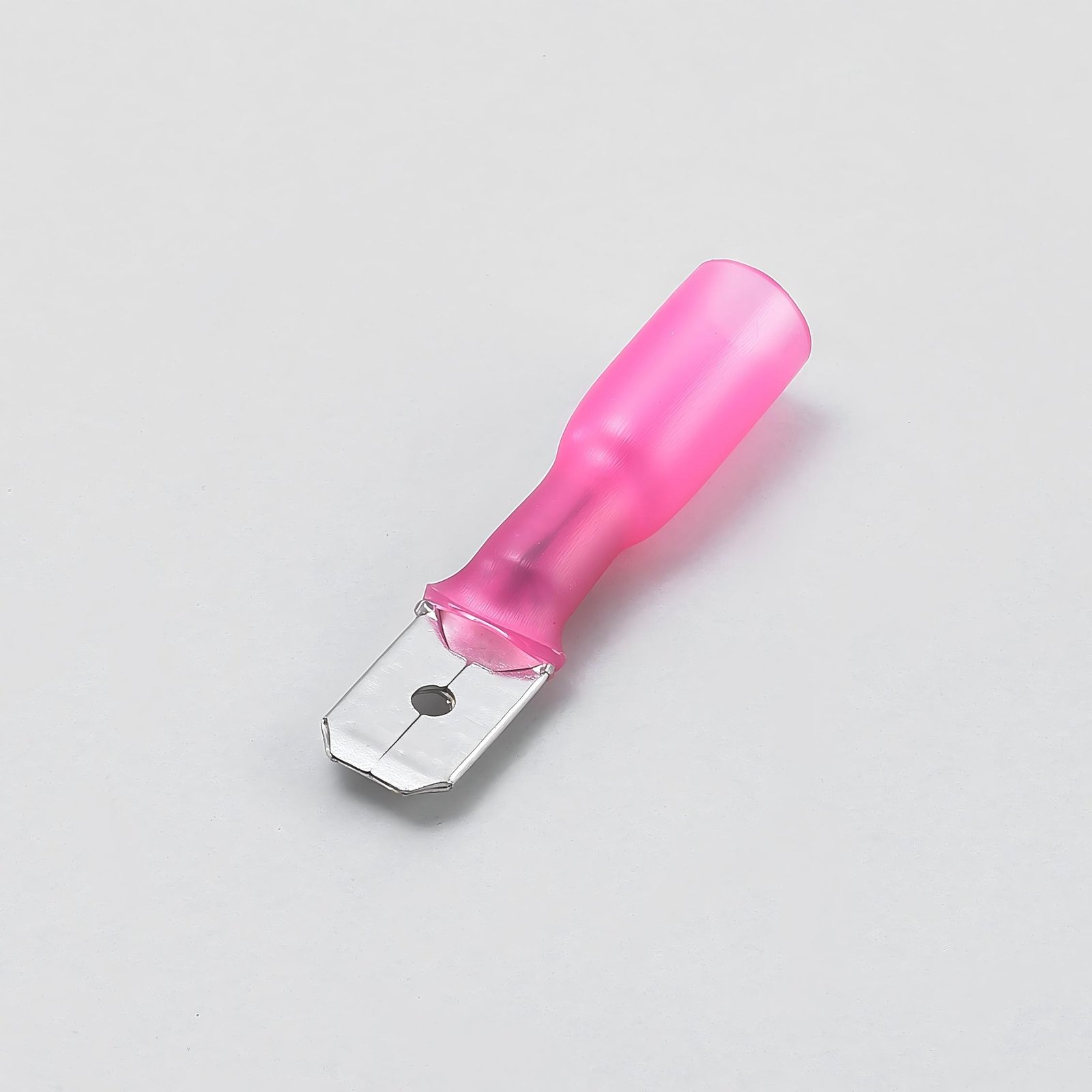

HEAT-SHRINKABLE(DOUBLE CRIMP)FEMALE TERMINALS(MDHD SERIES)

MAXIMUM ELECTRIC CURRENT: SPEC 1.25 2 5.5 MAX CURRENT 19 27 48 WIRE RANGE A.W.G. mm² ITEM NO. NEMA TAB DIMENSION(inch mm) Q’TY W F L E D T 22-16 A.W.G.0.5-1.5 mm² MDHD1.25-110(5) 0.5×2.8 2.8 6.5 28.5 20 4.8 0.5 1000 MDHD1.25-110(8) 0.8×2.8 0.4 1000 MDHD1.25-187(5) 0.5×4.75 4.8 29 0.5 1000 MDHD1.25-187(8) 0.8×4.75 6.7 0.4 […]

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.

SHRINK TEMP: 150℃

OPERATING TEMP: -40℃~+105℃

INSULATION MATERIAL: HIGH DENSITY PE.

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

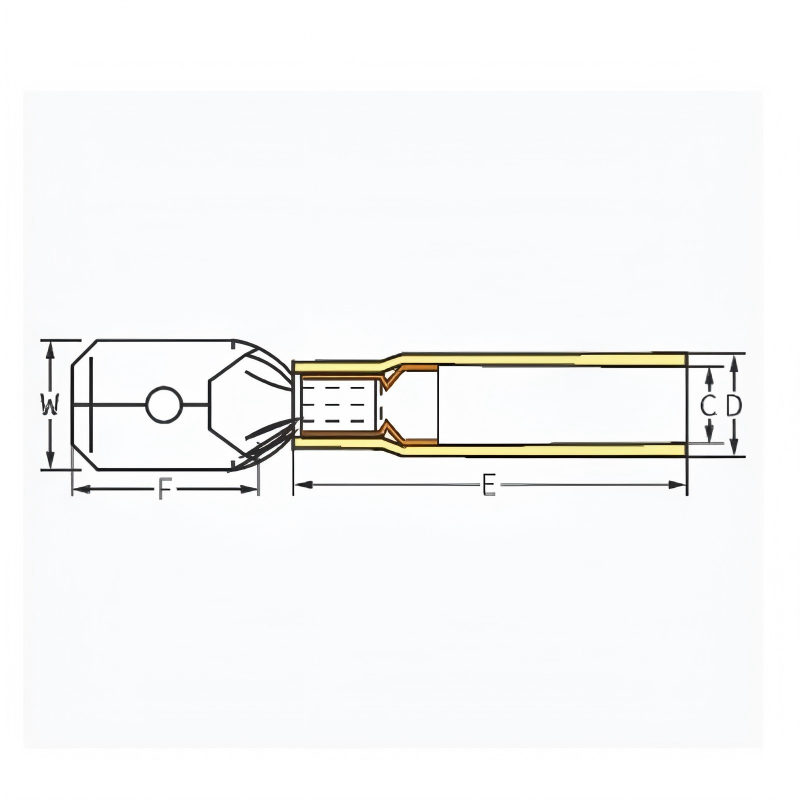

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G.0.5-1.5 mm²	MDHD1.25-110(5)	0.5×2.8	2.8	6.5	28.5	20	4.8	0.5	1000
	MDHD1.25-110(8)	0.8×2.8	2.8		28.5			0.4	1000
	MDHD1.25-187(5)	0.5×4.75	4.8		29			0.5	1000
	MDHD1.25-187(8)	0.8×4.75	4.8	6.7	29			0.4	1000
	MDHD1.25-250	0.8×6.35	6.35	7.7	31			0.4	1000
16-14 A.W.G.1.5-2.5 mm²	MDHD2-110(5)	0.5×2.8	2.8	6.5	28.5	20	5.8	0.5	1000
	MDHD2-110(8)	0.8×2.8	2.8	6.5	28.5				1000
	MDHD2-187(5)	0.5×4.75	4.8	6.5	29				1000
	MDHD2-187(8)	0.8×4.75	4.8	6.7	29			0.4	1000
	MDHD2-250	0.8×6.35	6.35	7.7	31			0.4	1000
12-10 A.W.G. 4-6 mm²	MDHD5-250	0.8×6.35	6.35	7.7	34	23	6.8	0.4	500
