HEAT-SHRINKABLE(DOUBLE CRIMP)FEMALE TERMINALS(MPHD SERIES)

MAXIMUM ELECTRIC CURRENT: SPEC 1.25 2 5.5 MAX CURRENT 19 27 48 WIRE RANGE A.W.G. mm² ITEM NO. DIMENSION(inch mm) Q’TY W F L E D T 22-16 A.W.G. 0.5-1.5 mm² MPHD1.25-156 4 8.5 31 20 4.8 0.4 1000 16-14 A.W.G. 1.5-2.5 mm² MPHD2-156 4 8.5 31 20 5.8 0.4 1000 12-10 A.W.G. 4-6 mm² […]

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.
SHRINK TEMP: 150℃
OPERATING TEMP: -40℃~+105℃
INSULATION MATERIAL: HIGH DENSITY PE.

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

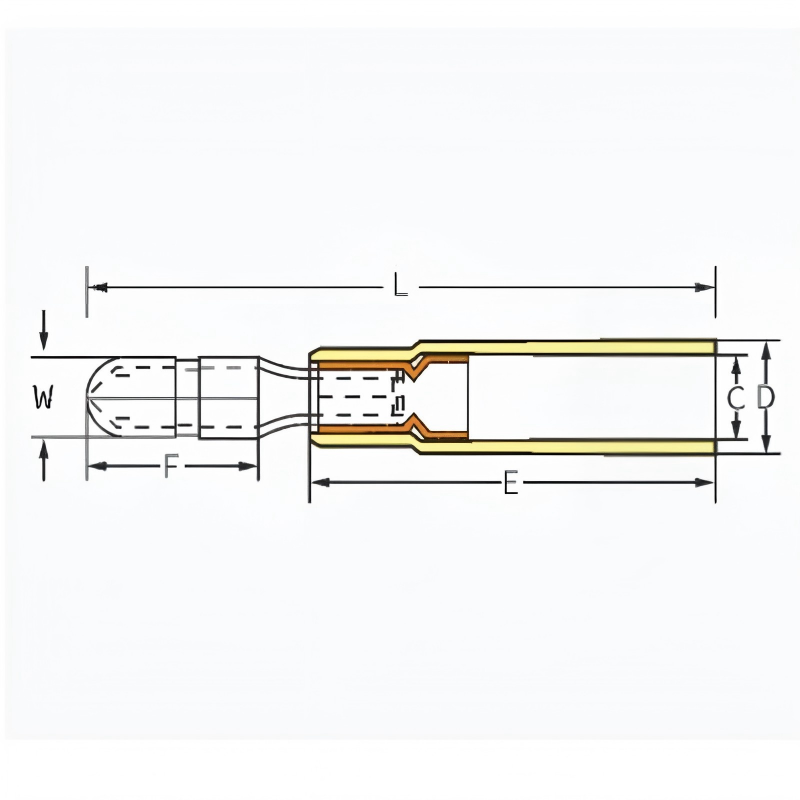

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MPHD1.25-156	4	8.5	31	20	4.8	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MPHD2-156	4	8.5	31	20	5.8	0.4	1000
12-10 A.W.G. 4-6 mm²	MPHD5.5-195	5	8.5	33.5	23	6.8	0.4	500
