HEAT-SHRINKABLE BLADE TERMINALS(DBHB SERIES)

DBHB Series heat-shrinkable blade terminals feature copper conductors, high-density PE insulation, 600V rating, and secure crimping for reliable wiring.

MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.

SHRINK TEMP: 150℃

OPERATING TEMP: -40℃~+105℃

INSULATION MATERIAL: HIGH DENSITY PE.

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(mm)							Q’TY

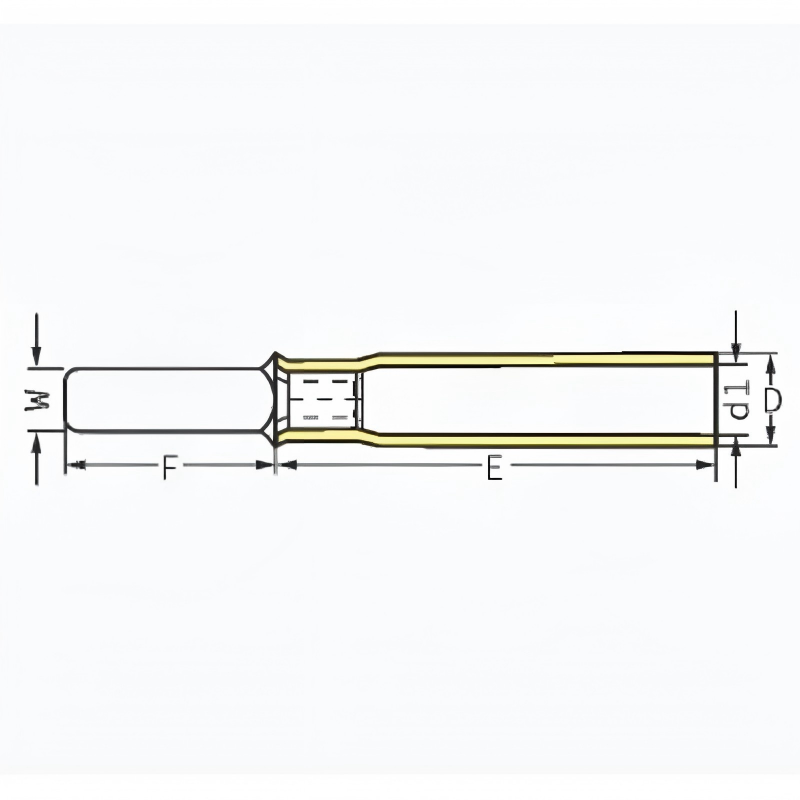

WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	DBHB1.25-10	2.3	10.0	27.9	18	4.8	1.7	0.7	1000
	DBHB1.25-14	3.0	14.00	32					1000
	DBHB1.25-18	2.2	18.0	36					1000
16-14 A.W.G. 1.5-2.5 mm²	DBHB2-10	2.3	10.0	27.9	18	5.8	2.3	0.8	1000
	DBHB2-14	3.0	14.0	32					1000
	DBHB2-18	2.2	18.0	36					1000
12-10 A.W.G. 4-6 mm²	DBHB5.5-10	2.8	10.0	28	21	6.8	3.4	1.0	1000
	DBHB5.5-14	4.0	14.0	34.9					1000
	DBHB5.5-18	4.5	18.0	39					1000
