VINYL-INSULATED SPADE TERMINALS（SV SERIES）

SV Series vinyl-insulated spade terminals, PVC insulated, 600V 75°C rated crimp connectors for secure industrial wiring, reliable electrical connections.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.
INSULATION MATERIAL: VINYL

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	3.5	5.5	8	14	22
MAX CURRENT	19	27	37	48	62	88	115

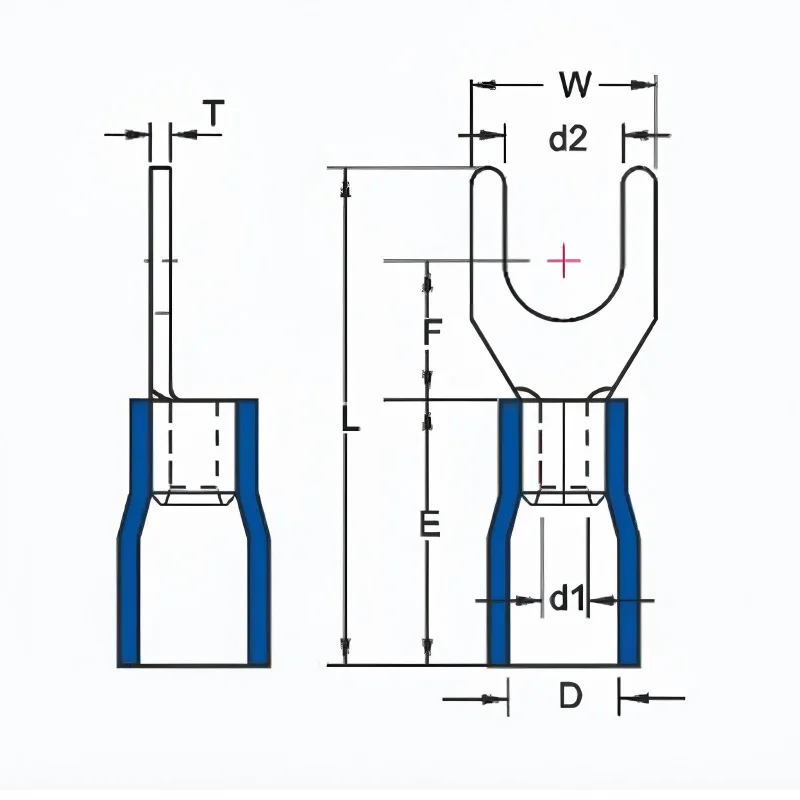

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION (mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-15 mm²	SV1.25-3.2	#4	3.2	5.6	6.3	21.1	10.0	4.0	1.7	0.7	1000
	SV1.25-3.7S	#6	3.7	5.6	6.3	21.1					1000
	SV1.25-3.7L	#6	3.7	6.3	6.4	21.1					1000
	SV1.25-4S	#8	4.3	6.4	6.5	21.1					1000
	SV1.25-4M	#8	4.3	7.2	6.4						1000
	SV125-4L	#8	4.3	7.9	6.0						1000
	SV1.25-5S	#10	5.3	8.0	6.5						1000
	SV125-5L	#10	5.3	9.4	6.3						1000
	SV1.25-6S	1/4	6.4	9.5	6.4						1000
	SV125-6L	1/4	6.4	11.8	10.4	26.5					1000
	SV125-8	5/16	8.4	12.0	10.8	25.3					1000
16-14 A.W.G. 1.5-2.5 mm²	SV2-3.2	#4	3.2	5.7	6.5	21.1	10.0	4.5	2.3	0.8	1000
	SV2-3.7S	#6	3.7	5.7							1000
	SV2-3.7L	#6	3.7	6.3							1000
	SV2-4S	#8	4.3	6.4							1000
	SV2-4M	#8	4.3	7.1							1000
	SV2-4L	#8	4.3	7.9	6.0						1000
	SV2-5S	#10	5.3	8.0	6.5						1000
	SV2-5L	#10	5.3	9.4	6.3						1000
	SV2-6S	1/4	6.4	9.5	6.4						1000
	SV2-6L	1/4	6.4	11.8	10.4	26.5					1000
	SV2-8	5/16	8.4	12.0	10.8	25.3					1000
14-12 A.W.G. 2.5-4 mm²	SV3.5-3	#4	3.2	6.8	7.5	26	13.0	6.3	3.0	1.0	500
	SV3.5-4	#8	4.3	7.8	6.8	25.5					500
	SV3.5-5	#10	5.3	7.8	6.8	25.5					500
	SV3.5-6	1/4	6.4	11.9	9.6	28.3					500
12-10 A.W.G. 4-6 mm²	SV5.5-3.7	#6	3.7	7.9	7.0	25.5	13.0	6.4	3.4	1.0	500
	SV5.5-4SS	#8	4.3	7.2	7.5	24.6					500
	SV5.5-4S	#8	4.3	8.3	7.3	25.7					500
	SV5.5-4L	#8	4.3	9.0	7.0	25.2					500
	SV5.5-5	#10	5.3	8.7	6.8	24.8					500
	SV5.5-6S	1/4	6.4	8.7	7.3	24.8					500
	SV5.5-6L	1/4	6.4	12.0	11.0	30.7					500
	SV5.5-8	5/16	8.4	13.9	11.3	30.7					500
8A.W.G. 8mm²	SV8-4	#8	4.3	9.0	7.8	27.4	16.7	8.5	4.5	1.2	200
	SV8-5	#10	5.3	9.0	7.8	27.4					200
	SV8-6	1/4	6.4	11.2	8.3	29.1					200
	SV8-8	5/16	8.4	14.5	11.4	34.4					200
6A.W.G. 14 mm²	SV14-4	#8	4.6	11.0	9.8	38.5	21.0	11.5	5.8	1.4	200
	SV14-5	#10	5.6	11.0	9.8	38.5					200
	SV14-6	1/4	6.4	12.0	10.8	38.6					200
	SV14-8	5/16	8.4	14.5	11.3	39.0					200
4 A.W.G. 22 mm²	SV22-8	5/16	8.4	13.8	12.1	44.9	24.0	13.0	7.7	1.7	100
