Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	3.5	5.5	8	14	22	38
MAX CURRENT	19	27	37	48	62	88	115	160

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY

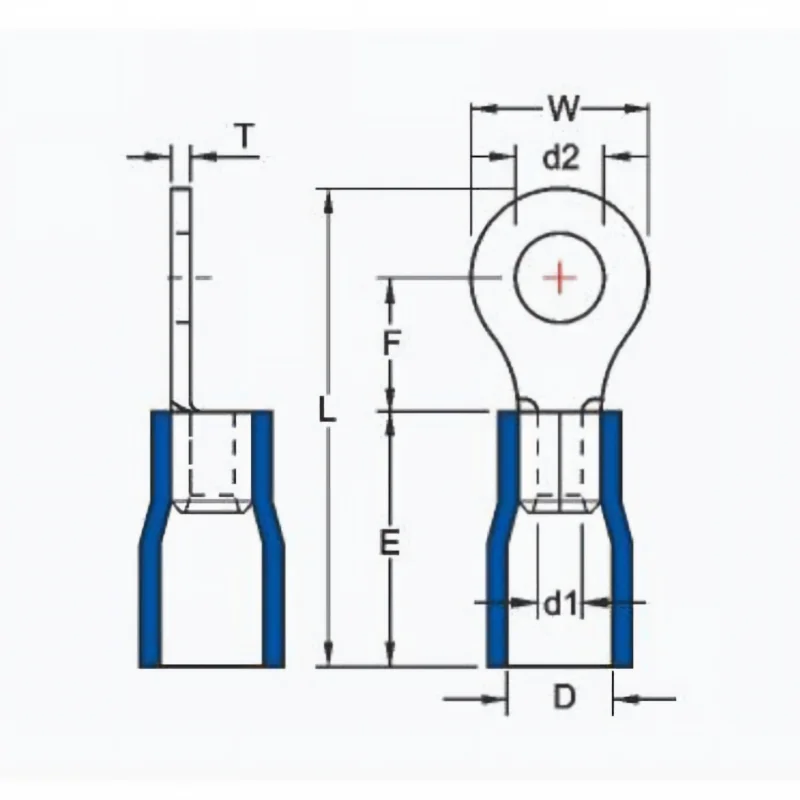

WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	RV1.25-3.2	#4	3.2	5.5	5.0	17.8	10.0	4.0	1.7	0.7	1000
	RV1.25-3.7S	#6	3.7	5.5	5.0	17.8					1000
	RV1.25-3.7M	#6	3.7	6.6	6.4	19.7					1000
	RV1.25-3.7L	#6	3.7	8.0	6.5	20.5					1000
	RV1.25-4S	#8	4.3	6.6	6.4	19.7					1000
	RV1.25-4L	#8	4.3	8.0	6.5	20.5					1000
	RV1.25-5S	#10	5.3	8.0	6.5	20.5					1000
	RV1.25-5L	#10	5.3	9.4	7.3	22					1000
	RV1.25-6S	1/4	6.4	9.4	7.3	22					1000
	RV1.25-6	1/4	6.4	11.6	10.5	26.3					1000
	RV1.25-8	5/16	8.4	11.6	10.5	26.3					1000
	RV1.25-10	3/8	10.5	13.6	13.9	30.7					1000
	RV1.25-12	1/2	12.5	18	15.0	36.2					1000
	RV1.25-14	9/16	14.5	23.4	19	40.7					500
	RV1.25-16	5/8	16.5								500
	RV1.25-18	3/4	18.5								500
16-14 A.W.G. 1.5-2.5 mm²	RV2-3.2	#4	3.2	6.5	4.8	18.1	10.0	4.5	2.3	0.8	1000
	RV2-3.7S	#6	3.7	6.5	4.8	18.1					1000
	RV2-3.7M	#6	3.7	6.6	6.3	19.6					1000
	RV2-3.7L	#6	3.7	8.5	7.1	21.3					1000
	RV2-4S	#8	4.3	6.6	6.3	19.6					1000
	RV2-4L	#8	4.3	8.5	7.1	21.3					1000
	RV2-5S	#10	5.3	8.5	7.1	21.3					1000
	RV2-5L	#10	5.3	9.4	7.3	22					1000
	RV2-6S	1/4	6.4	9.4	7.3	22					1000
	RV2-6	1/4	6.4	11.6	10.5	26.3					1000
	RV2-8	5/16	8.4	11.6	10.5	26.3					1000
	RV2-10	3/8	10.5	13.6	13.9	34					1000
	RV2-12	1/2	12.5	18	15	34					1000
	RV2-14	9/16	14.5	23.4	19	40.7					1000
	RV2-16	5/8	16.5								500
	RV2-18	3/4	18.5								500
14-12 A.W.G. 2.5-4 mm²	RV3.5-4	#8	4.3	7.9	7.1	24	13.0	6.3	3.0	1.0	500
	RV3.5-5	#10	5.3	7.9	7.1	24					500
	RV3.5-5L	#10	5.3	11.9	9.1	28					500
	RV3.5-6	1/4	6.4	11.9	9.1	28					500
	RV3.5-8	5/16	8.4	14.8	13.3	33.7					500
	RV3.5-10	3/8	10.5	14.8	13.3	33.7					500
	RV3.5-12	1/2	13.0	19.2	16.0	39.1					500
12-10 A.W.G. 4-6 mm²	RV5.5-3.7	#6	3.7	7.2	5.9	22.2	13.0	6.4	3.4	1.0	1000
	RV5.5-3.7L	#6	3.7	9.2	7.8	25.4					1000
	RV5.5-4S	#8	4.3	7.2	5.9	22.2					1000
	RV5.5-4L	#8	4.3	9.2	7.8	25.4					1000
	RV5.5-5	#10	5.3	9.2	7.8	25.4					1000
	RV5.5-6	1/4	6.4	12.0	10.5	29.6					1000
	RV5.5-8	5/16	8.4	14.8	13.2	33.6					1000
	RV5.5-10	3/8	10.5	14.8	13.2	33.6					1000
	RV5.5-12	1/2	13.0	18.4	14.6	36.8					500
	RV5.5-14	9/16	15.0	23.4	19	43.2					500
	RV5.5-16	5/8	17.0								500
	RV5.5-18	11/16	19.0								500
8 A.W.G. 8 mm²	RV8-3.7	#6	3.7	8.0	9.3	28.3	16.7	8.5	4.5	1.2	200
	RV8-4S	#8	4.3	8.0	9.3	28.3					200
	RV8-4L	#8	4.3	11.8	9.0	29.9					200
	RV8-5S	#10	5.3	8.8	10.8	30.2					200
	RV8-5M	#10	5.3	11.8	9.0	29.9					200
	RV8-5L	#10	5.3	14.8	13.3	35.7					200
	RV8-6S	1/4	6.4	11.8	9.0	29.9					200
	RV8-6L	1/4	6.4	14.8	13.3	35.7					200
	RV8-8	5/16	8.4								200
	RV8-10	3/8	10.5								200
	RV8-12	1/2	13.0	20.0	15.0	40.8					200
	RV8-14	9/16	15.0	31.6	25.6	56.8					200
	RV8-16	5/8	17.0								200
	RV8-18	11/16	19.0								200
	RV8-20	3/4	21.0								200
	RV8-22	7/8	23.0								200
6 A.W.G. 14 mm²	RV14-4	#8	4.3	12.0	12.5	39	22.5	10.5	5.8	1.4	200
	RV14-5	#10	5.3								200
	RV14-6S	1/4	6.4								200
	RV14-6L	1/4	6.4	16.0	13.8	42.3					200
	RV14-8	5/16	8.4								200
	RV14-10	3/8	10.5								200
	RV14-12	1/2	13.0	22.0	19.5	51					200
	RV14-14	9/16	15.0	31.6	25.3	61					200
	RV14-16	5/8	17.0								200
	RV14-18	11/16	19.0								200
	RV14-20	3/4	21.0								200
4 A.W.G. 22 mm²	RV22-4	#8	4.3	12.2	13.9	46.6	24.0	13.0	7.7	1.7	100
	RV22-5S	#10	5.3	12.2	13.9	46.6					100
	RV22-5L	#10	5.3	16.5	13.5	45.5					100
	RV22-6S	1/4	6.4	12.2	13.9	43.6					100
	RV22-6L	1/4	6.4	16.5	12.7	44.6					100
	RV22-8	5/16	8.4								100
	RV22-10	3/8	10.5								100
	RV22-12	1/2	13.0	22.0	19.7	54.5					100
	RV22-14	9/16	15.0	30.0	24.2	62.5					100
	RV22-16	5/8	17.0								100
	RV22-18	11/16	19.0								100
	RV22-20	3/4	21.0	30.0	24.2						100
	RV22-22	7/8	23.0	30.0	24.2						100
2 A.W.G. 38 mm²	RV38-5	#10	5.3	15.3	17.1	51.2	27.0	14.5	9.4	1.8	100
	RV38-6S	1/4	6.4	15.3	17.1	51.2					100
	RV38-6L	1/4	6.4	22.0	17.5	55					100
	RV38-8S	5/16	8.4	15.3	17.1	51.2					100
	RV38-8L	5/16	8.4	22.0	17.5	55					100
	RV38-10S	3/8	10.5	15.3	17.1	51.2					100
	RV38-10L	3/8	10.5	22.0	17.5	55					100
	RV38-12	1/2	13.0	22.0	17.5	55					100
	RV38-14	9/16	15.0	30.0	23.3	64.5					100
	RV38-16	5/8	17.0								100
	RV38-18	11/16	19.0								100
	RV38-20	3/4	21.0								100
	RV38-22	7/8	23.0								100
	RV38-24	15/16	25.0								100
