VINYL-INSULATED SPADE MINITYPE TERMINALS (S-SV SERIES)

S-SV Series vinyl-insulated mini spade terminals feature copper construction, color-coded insulation, and multiple stud sizes for secure electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600VOLTS MAX

INSULATION MATERIAL: VINYL

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,14-12A.W.G.:BLACK,12-10A.W.G.:YELLOW

TERMINAL MATERIAL: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	3.5	5.5
MAX CURRENT	19	27	37	48

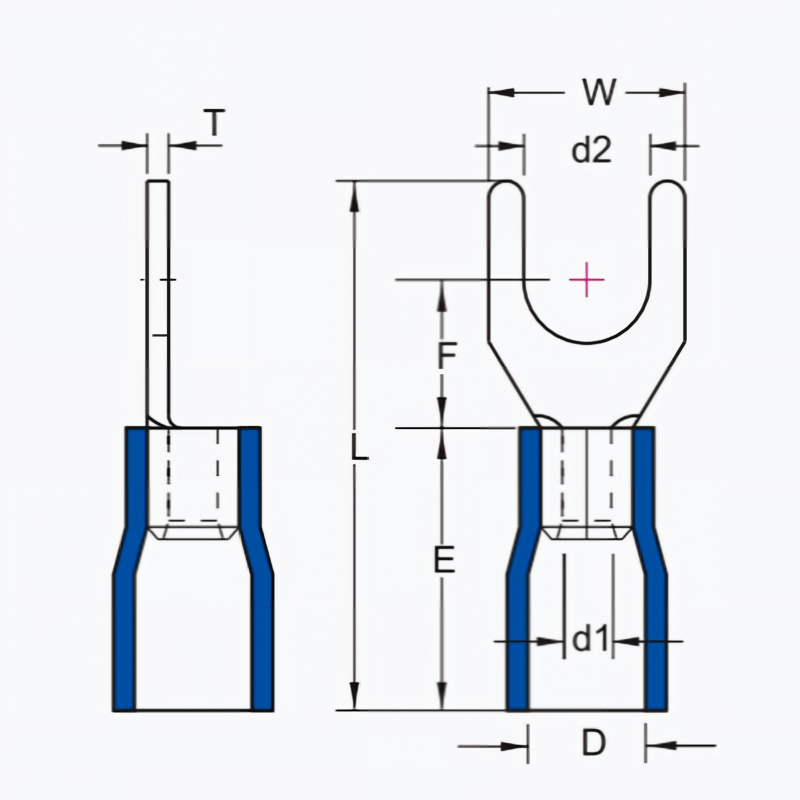

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 1.5 mm²	S-SV1.25-3	#4	3.2	5	5.1	19.3	10	4	1.7	0.5	1000
	S-SV1.25-4	#8	4.3	6.2	5.8	19.8					1000
	S-SV1.25-5	#10	5.2	7	6.1	19.3					1000
16-14 A.W.G. 2.5 mm²	S-SV2-3	#4	3.2	5	5.1	19.4	10	4.5	2.3	0.5	1000
	S-SV2-4	#8	4.3	6.2	5.8	19.8					1000
	S-SV2-5	#10	5.2	7	6	19.3					1000
14-12 A.W.G. 4 mm²	S-SV3.5-4	#8	4.3	6.9	6	23.7	13	5.9	2.9	0.6	500
	S-SV3.5-5	#10	5.3	7.9	6.6	23.9					500
	S-SV3.5-6	1/4	6.2	8.6	6.9	23.8					500
12-10 A.W.G. 6 mm²	S-SV5.5-4	#8	4.3	6.7	5.8	23.6	13	6.1	3.4	0.6	500
	S-SV5.5-5	#10	5.2	7.6	6.2	23.9					500
	S-SV5.5-6	1/4	6.2	8.6	6.9	24					500
