VINYL-INSULATED RING MINITYPE TERMINALS (S-RV SERIES)

S-RV Series vinyl-insulated mini ring terminals feature copper construction, color-coded insulation, and multiple stud sizes for secure electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600VOLTS MAX

INSULATION MATERIAL: VINYL

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,14-12A.W.G.:BLACK,12-10A.W.G.:YELLOW

TERMINAL MATERIAL: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	3.5	5.5
MAX CURRENT	19	27	37	48

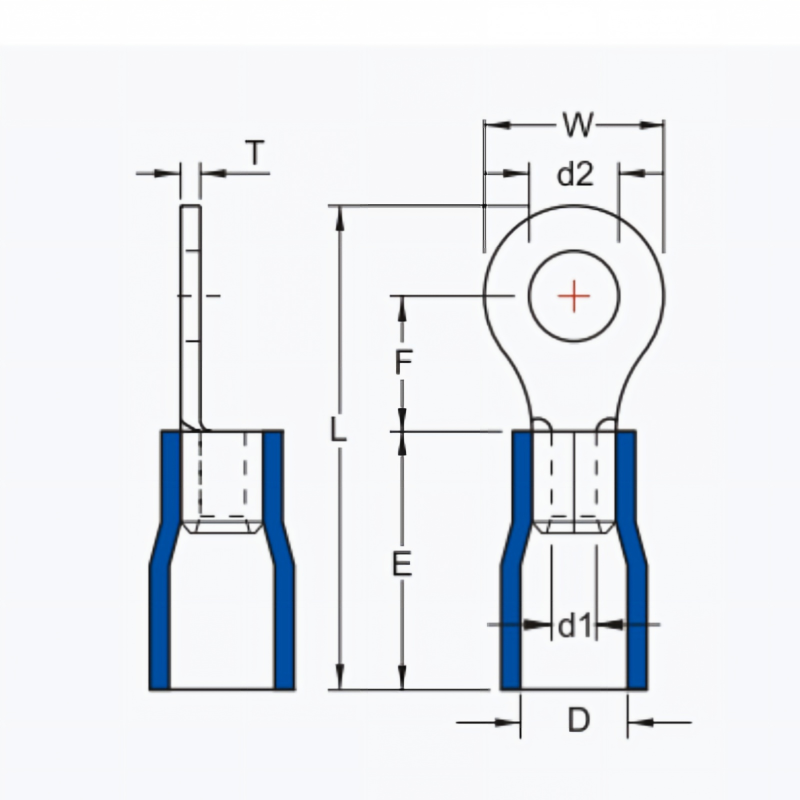

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16A.W.G. 1.5 mm²	S-RV1.25-3	#4	3.2	5.4	4.7	17.4	10	4	1.7	0.5	1000
	S-RV1.25-4	#8	4.3	6.5	4.9	18.1					1000
	S-RV1.25-5	#10	5.3	7.3	5.2	18.8					1000
16-14 A.W.G. 2.5 mm²	S-RV2-3	#4	3.2	5.5	3.6	16	10	4.5	2.3	0.5	1000
	S-RV2-4	#8	4.3	6.5	4.9	18.1					1000
	S-RV2-5	#10	5.3	7.8	7	20.9					1000
14-12A.W.G. 4 mm²	S-RV3.5-4	#8	4.3	7	6.7	23.2	13	5.9	2.9	0.6	500
	S-RV3.5-5	#10	5.3	8	6.7	23.7					500
	S-RV3.5-6	2026-01-04 00:00:00	6.5	9.5	7.5	25					500
	S-RV3.5-8	2026-05-16 00:00:00	8.5	11.6	8.5	27.1					500
12-10 A.W.G. 6mm²	S-RV5.5-5	#10	5.3	8	6.7	23.7	13	6.1	3.4	0.6	500
	S-RV5.5-6	2026-01-04 00:00:00	6.5	9.5	7.5	25.3					500
	S-RV5.5-8	2026-05-16 00:00:00	8.5	13.4	10.8	31					500
	S-RV5.5-10	2026-03-08 00:00:00	10.5	13.4	10.8	31					500
