VINYL-INSULATED(EASY ENTRY) PIN TERMINALS（PTVE SERIES）

PTVE Series vinyl-insulated easy entry pin terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

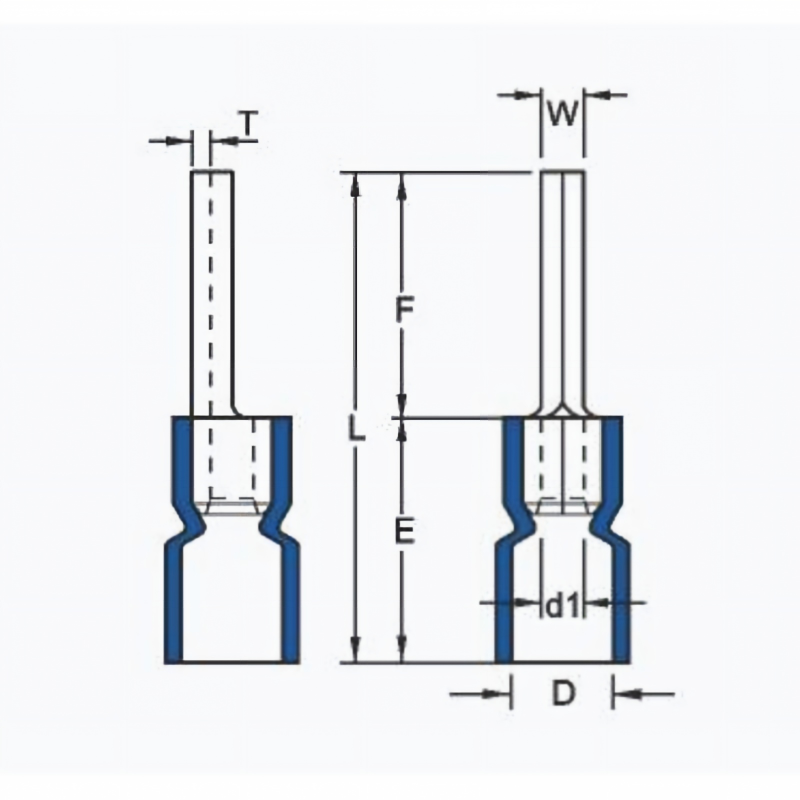

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	PTVE1.25-10	1.9	10	21	11	4	1.7	0.7	1000
	PTVE1.25-12		12	23					1000
	PTVE1.25-18		18	29					1000
16-14 A.W.G. 1.5-2.5 mm²	PTVE2-10	1.9	10	21	11	4.5	2.3	0.8	1000
	PTVE2-12		12	23					1000
	PTVE2-18		18	29					1000
12-10 A.W.G. 2.5-6 mm²	PTVE5.5-13	2.8	13	27	14	6.3	3.4	1	500
12-10 A.W.G. 2.5-6 mm²	PTVE5.5-18	2.8	18	32	14	6.3	3.4	1	500
