Description
MAXIMUM ELECTRIC CURRENT:
| SPEC | 1.25 | 2 | 5.5 |
| MAX CURRENT | 19 | 27 | 48 |

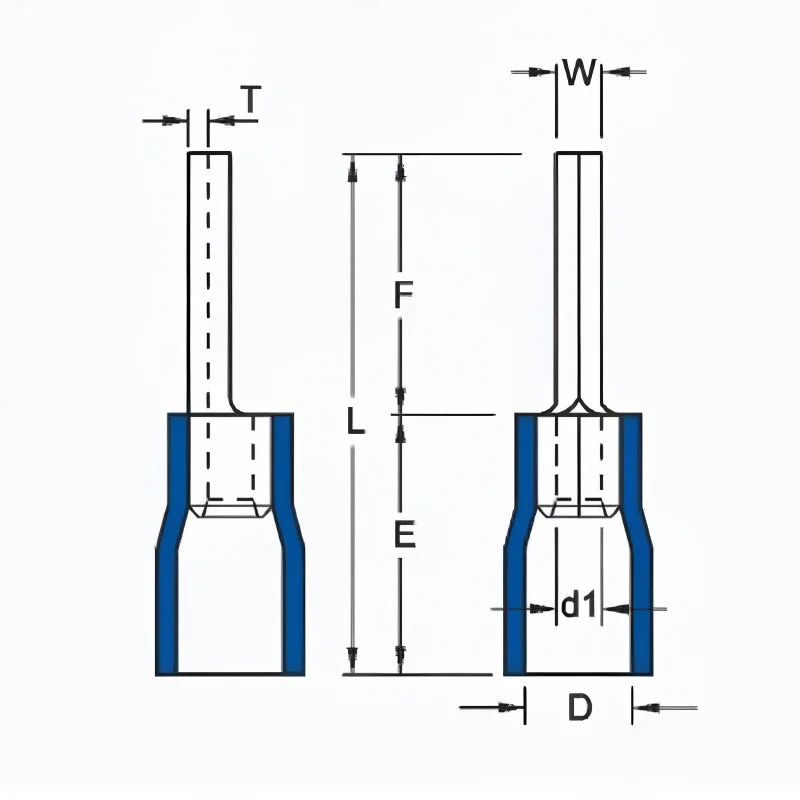

| WIRE RANGE A.W.G. mm² | ITEM NO. | DIMENSION(mm) | Q’TY | ||||||
| W | F | L | E | D | d1 | T | |||
| 22-16 A.W.G. 0.5-1.5 mm² | PTV1.25-10 | 1.9 | 10.0 | 20 | 10.0 | 4.0 | 1.7 | 0.7 | 1000 |
| PTV1.25-12 | 12.0 | 22 | 1000 | ||||||
| PTV1.25-18 | 18.0 | 28 | 1000 | ||||||
| 16-14 A.W.G. 1.5-2.5 mm² | PTV2-10 | 1.9 | 10.0 | 20 | 10.0 | 4.5 | 2.3 | 0.8 | 1000 |
| PTV2-12 | 12.0 | 22 | 1000 | ||||||
| PTV2-18 | 18.0 | 28 | 1000 | ||||||
| 12-10 A.W.G. 2.5-6 mm² | PTV5.5-13 | 2.8 | 13.0 | 26 | 13.0 | 6.4 | 3.4 | 1.0 | 500 |
| PTV5.5-18 | 18.0 | 31 | 500 | ||||||
