VINYL-INSULATED LOCKING SPADE TERMINALS（LSV SERIES）

LSV Series vinyl-insulated locking spade terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring and control panels.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

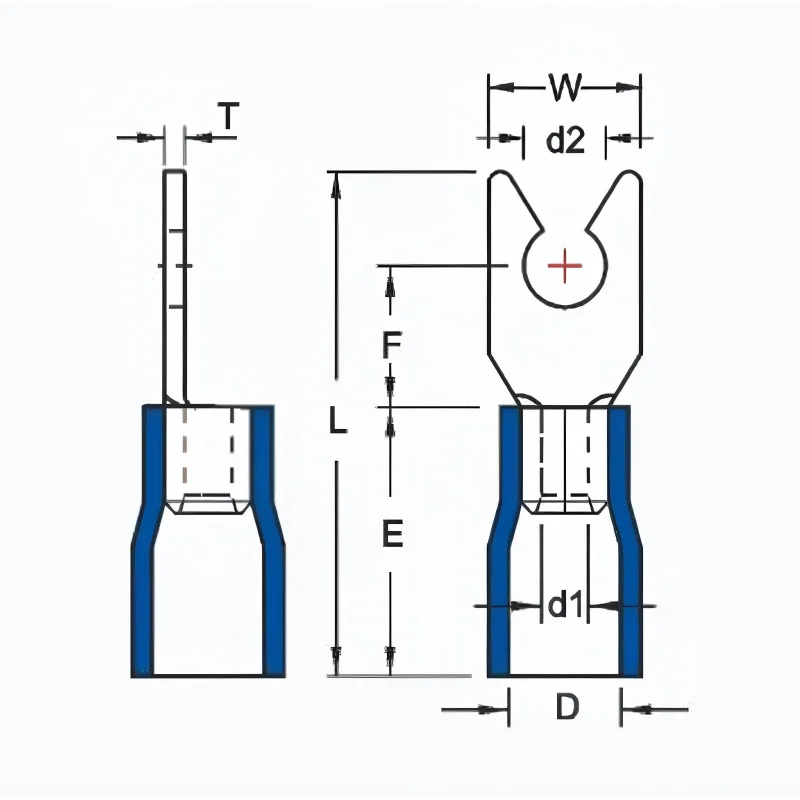

WIRE RANGE A.W.G. mm²	ITEM NO.	STUDSIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	LSV1.25-3.7	#6	3.7	6.4	6.5	21.1	10.0	4.0	1.7	0.7	1000
	LSV1.25-4S	#8	4.3	7.2							1000
	LSV1.25-4L	#8	4.3	8.1							1000
	LSV1.25-5S	#10	5.3.	8.1							1000
	LSV1.25-5L	#10	5.3	9.5							1000
16-14 A.W.G. 1.5-2.5 mm²	LSV2-3.7	#6	3..7	6.0	6.5	21.1	10.0	4.5	2.3	0.8	1000
	LSV2-4	#8	4.3	7.2							1000
	LSV2-4L	#8	4.3	8.1							1000
	LSV2-5S	#10	5.3	8.1							1000
	LSV2-5L	#10	5.3	9.3							1000
12-10 A.W.G. 4-6 mm²	LSV5.5-3.7	#6	3.7	8.3	7.0	25.2	13.0	6.4	3.4	1.0	500
	LSV5.5-4	#8	4.3	8.3							500
	LSV5.5-5	#10	5.3	9.0							500
	LSV5.5-6	1/4	6.4	12.0	12.0	31.5					500
