VINYL-INSULATED HOOK TERMINALS（HV SERIES）

HV Series vinyl-insulated hook terminals feature high-conductivity copper, 600V/75°C PVC insulation, and secure crimp installation for reliable industrial wiring, electrical panels, and control systems.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

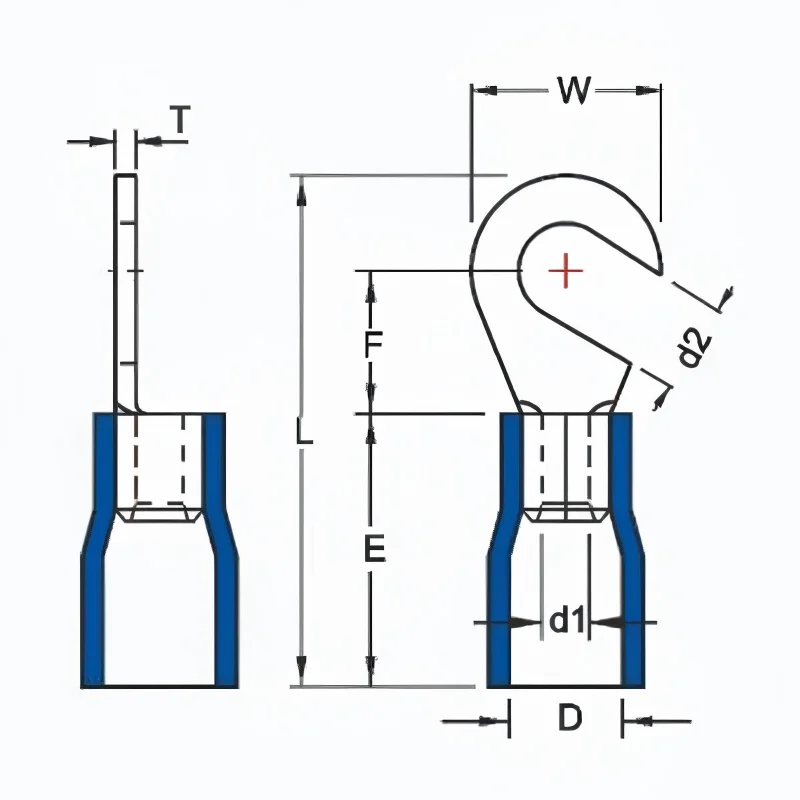

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	HV1.25-3.7	#6	3.7	8.0	7.0	21.1	10.0	4.2	1.7	0.7	1000
	HV1.25-4	#8	4.3								1000
	HV1.25-5	#10	5.3								1000
	HV1.25-6	1/4	6.4	11.6	11.0	26.2					1000
16-14 A.W.G. 1.5-2.5 mm²	HV2-3.7	#6	3.7	12.0	11.0	22.2	10.0	5.0	2.3	0.8	1000
	HV2-4	#8	4.3	12.0	11.0						1000
	HV2-5	#10	5.3	9.5	7.3						1000
	HV2-6	1/4	6.4	8.5	7.4	27.2					1000
12-10 A.W.G 4-6 mm²	HV5.5-3.7	#6	3.7	7.2	6.1	23.5	13.0	6.8	3.4	1.0	500
	HV5.5-4	#8	4.3	9.5	9.5	27					500
	HV5.5-5	#10	5.3	9.5	9.5	27					500
	HV5.5-6	1/4	6.4	12.0	10.3	30.4					500
	HV5.5-8	5/16	8.4	15.0	13.5	36.6					500
