VINYL-INSULATED(EASY ENTRY) FLANGE SPADE TERMINALS（FSVE SERIES）

FSVE Series vinyl-insulated easy entry flange spade terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL BODY: COPPER

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,12-10A.W.G:YELLOW

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

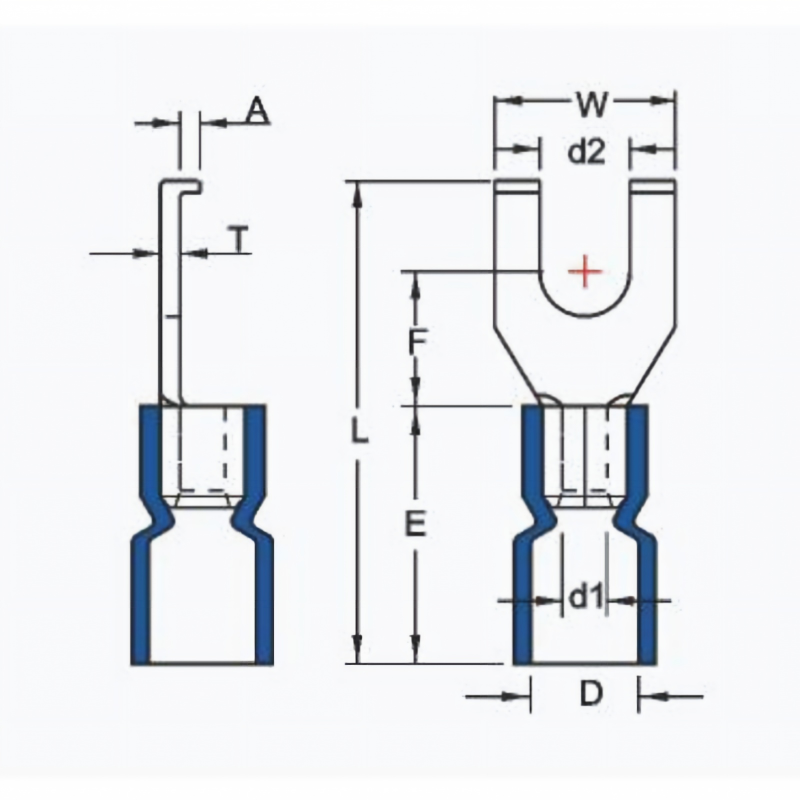

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)								Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	A	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	FSVE1.25-3.7	#6	3.7	7.5	5.1	20.2	11.0	4.0	1.7	1.5	0.7	1000
	FSVE1.25-4	#8	4.3	7.5	5.1	10.2						1000
	FSVE1.25-5	#10	5.3	7.5	5.1	20.2						1000
16-14 A.W.G. 1.5-2.5 mm²	FSVE2-3.7	#6	3.7	7.5	5.2	20.7	11.0	4.5	2.3	1.5	0.8	1000
	FSVE2-4	#8	4.3	7.5	5.2	20.7						1000
	FSVE2-5	#10	5.3	7.5	5.2	20.7						1000
	FSVE2-5L	#10	5.3	8.5	7.2	24.2						1000
12-10 A.W.G. 4-6 mm²	FSVE5.5-3.7	#6	3.7	8.5	7.5	28	14.0	6.3	3.4	1.5	1.0	500
	FSVE5.5-4	#8	4.3	8.5	7.5	28						500
	FSVE5.5-5	#10	5.3	8.5	7.5	28						500
