VINYL-INSULATED DOUBLE CRIMP SPADE TERMINALS（SD SERIES）

SD Series vinyl-insulated easy entry double spade terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G.:YELLOW

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

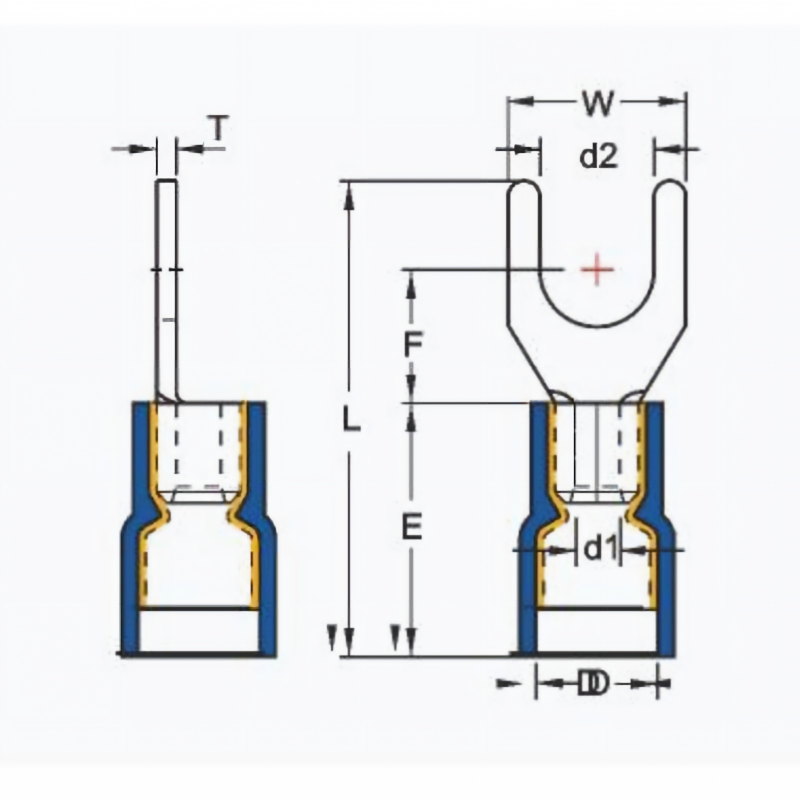

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-15 mm²	SD1.25-3.2	#4	3.2	5.6	6.3	21.1	10.0	4.2	1.7	0.7	1000
	SD1.25-3.7S	#6	3.7	5.6	6.3	21.1					1000
	SD1.25-3.7L	#6	3.7	6.3	6.4	21.1					1000
	SD1.25-4S	#8	4.3	6.4	6.5	21.1					1000
	SD1.25-4M	#8	4.3	7.2	6.4						1000
	SD1.25-4L	#8	4.3	7.9	6.0						1000
	SD1.25-5S	#10	5.3	8.0	6.5						1000
	SD1.25-5L	#10	5.3	9.4	6.3						1000
	SD1.25-6S	1/4	6.4	9.5	6.4						1000
	SD1.25-6L	1/4	6.4	11.8	10.4	26.5					1000
	SD1.25-8	5/16	8.4	12.0	10.8	25.3					1000
16-14 A.W.G. 1.5-2.5 mm²	SD2-3.2	#4	3.2	5.7	6.5	21.1	10.0	5.0	2.3	0.8	1000
	SD2-3.7S	#6	3.7	5.7							1000
	SD2-3.7L	#6	3.7	6.3							1000
	SD2-4S	#8	4.3	6.4							1000
	SD2-4M	#8	4.3	7.1							1000
	SD2-4L	#8	4.3	7.9	6.0						1000
	SD2-5S	#10	5.3	8.0	6.5						1000
	SD2-5L	#10	5.3	9.4	6.3						1000
	SD2-6S	1/4	6.4	9.5	6.4						1000
	SD2-6L	1/4	6.4	11.8	10.4	26.5					1000
	SD2-8	5/16	8.4	12.0	10.8	25.3					1000
12-10 A.W.G. 4-6 mm²	SD5.5-3.7	#6	3.7	7.9	7.0	25.5	13.0	6.8	3.4	1.0	500
	SD5.5-4SS	#8	4.3	7.2	7.5	24.6					500
	SD5.5-4S	#8	4.3	8.3	7.3	25.7					500
	SD5.5-4L	#8	4.3	9.0	7.0	25.2					500
	SD5.5-5	#10	5.3	8.7	6.8	24.8					500
	SD5.5-6S	1/4	6.4	8.7	7.3	24.8					500
	SD5.5-6L	1/4	6.4	12.0	11.0	30.7					500
	SD5.5-8	5/16	8.4	13.9	11.3	30.7					500
