VINYL-INSULATED DOUBLE CRIMP RING TERMINALS（RD SERIES）

RD Series vinyl-insulated easy entry double crimp ring terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

INSULATION COLOR: 22-16A.W.G:RED 16-14A.W.G:BLUE

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

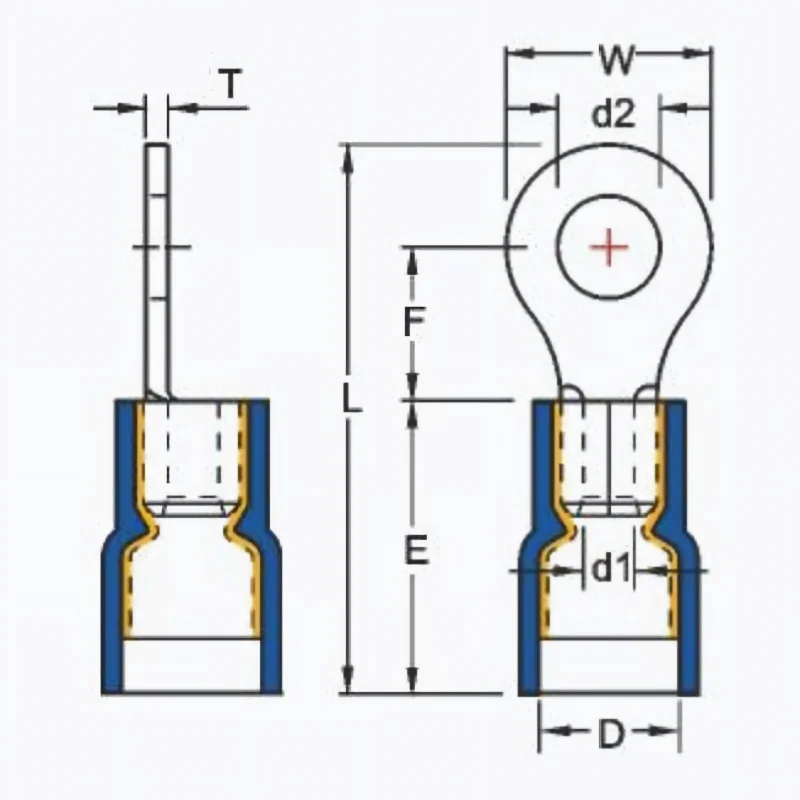

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	RD1.25-3.2	#4	3.2	5.5	5.0	17.8	10.0	4.2	1.7	0.7	1000
	RD1.25-3.7S	#6	3.7	5.5	5.0	17.8					1000
	RD1.25-3.7M	#6	3.7	6.6	6.4	19.7					1000
	RD1.25-3.7L	#6	3.7	8.0	6.5	20.5					1000
	RD1.25-4S	#8	4.3	6.6	6.4	19.7					1000
	RD1.25-4L	#8	4.3	8.0	6.5	20.5					1000
	RD1.25-5S	#10	5.3	8.0	6.5	20.5					1000
	RD1.25-5L	#10	5.3	9.4	7.3	22					1000
	RD1.25-6S	1/4	6.4	9.4	7.3	22					1000
	RD1.25-6	1/4	6.4	11.6	10.5	26.3					1000
	RD1.25-8	5/16	8.4	11.6	10.5	26.3					1000
	RD1.25-10	3/8	10.5	13.6	13.9	30.7					1000
	RD1.25-12	1/2	12.5	18	16.0	36.2					1000
	RD1.25-14	9/16	14.5	23.4	19	40.7					500
	RD1.25-16	5/8	16.5								500
	RD1.25-18	3/4	18.5								500
16-14 A.W.G. 1.5-2.5 mm²	RD2-3.2	#4	3.2	6.5	4.8	18.1	10.0	5.0	2.3	0.8	1000
	RD2-3.7S	#6	3.7	6.5	4.8	18.1					1000
	RD2-3.7M	#6	3.7	6.6	6.3	19.6					1000
	RD2-3.7L	#6	3.7	8.5	7.1	21.3					1000
	RD2-4S	#8	4.3	6.6	6.3	19.6					1000
	RD2-4L	#8	4.3	8.5	7.1	21.3					1000
	RD2-5S	#10	5.3	8.5	7.1	21.3					1000
	RD2-5L	#10	5.3	9.4	7.3	22					1000
	RD2-6S	1/4	6.4	9.4	7.3	22					1000
	RD2-6	1/4	6.4	11.6	10.5	26.3					1000
	RD2-8	5/16	8.4	11.6	10.5	26.3					1000
	RD2-10	3/8	10.5	13.6	13.9	34					1000
	RD2-12	1/2	12.5	18	15	34					1000
	RD2-14	9/16	14.5	23.4	19	40.7					500
	RD2-16	5/8	16.5								500
	RD2-18	3/4	18.5								500
12-10 A.W.G. 4-6 mm²	RD5.5-3.7	#6	3.7	7.2	5.9	22.2	13.0	6.8	3.4	10	500
	RD5.5-3.7L	#6	3.7	9.2	7.8	25.4					500
	RD5.5-4S	#8	4.3	7.2	5.9	22.2					500
	RD5.5-4L	#8	4.3	9.2	7.8	25.4					500
	RD5.5-5	#10	5.3	9.2	7.8	25.4					500
	RD5.5-6	1/4	6.4	12.0	10.5	29.6					500
	RD5.5-8	5/16	8.4	14.8	13.2	33.6					500
	RD5.5-10	3/8	10.5	14.8	13.2	33.6					500
	RD5.5-12	1/2	12.5	18.4	14.6	36.8					500
	RD5.5-14	9/16	14.5	23.4	19	43.2					500
	RD5.5-16	5/8	16.5								500
	RD5.5-18	11/16	18.5								500
