VINYL-INSULATED(EASY ENTRY) BLADE TERMINALS（DBVE SERIES）

DBVE Series vinyl-insulated easy entry blade terminals feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL BODY: COPPER

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,12-10A.W.G:YELLOW

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(mm)							Q’TY

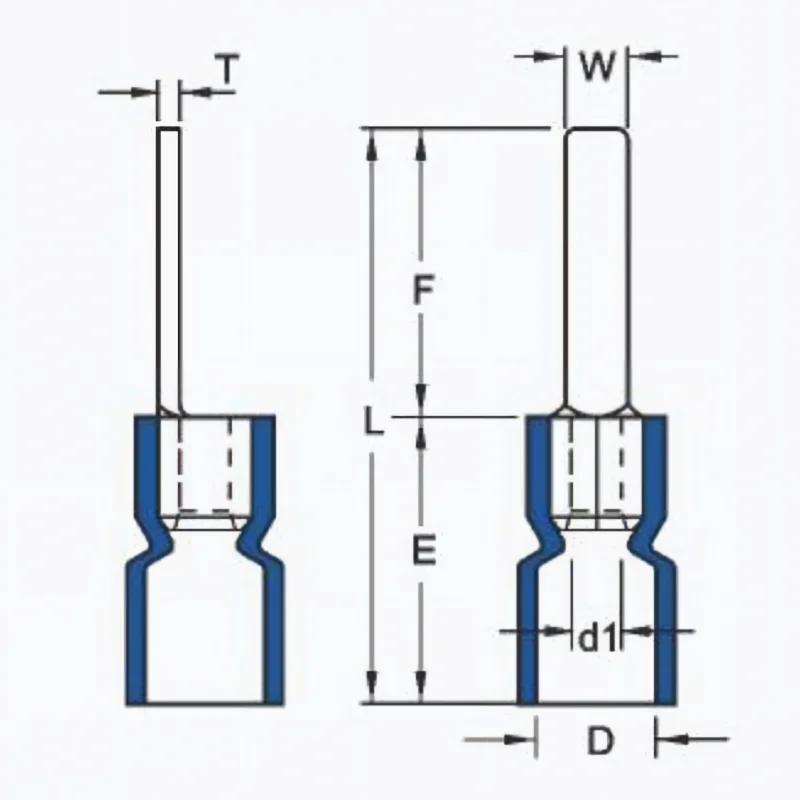

WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	DBVE1.25-10	2.3	10.0	20.9	11.0	4.0	1.7	0.7	1000
	DBVE1.25-14	3.0	14.00	25					1000
	DBVE1.25-18	2.2	18.0	29					1000
16-14 A.W.G. 1.5-2.5 mm²	DBVE2-10	2.3	10.0	20.9	11.0	4.5	2.3	0.8	1000
	DBVE2-14	3.0	14.0	25.0					1000
	DBVE2-18	2.2	18.0	29.0					1000
12-10 A.W.G. 4-6 mm²	DBVE5.5-10	2.8	10.0	24	14.0	6.3	3.4	1.0	500
	DBVE5.5-14	4.0	14.0	27.9					500
	DBVE5.5-18	4.5	18.0	33.6					500
