VINYL-FULLY INSULATED PARALLEL CONNECTORS(PVT SERIES)

PVT Series vinyl-fully insulated parallel connectors feature copper conductors, 600V/75°C PVC insulation, and secure crimp connections for reliable industrial wire splicing and electrical installations.

MAXIMUM ELECTRICAL RATING: 75℃600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	0.5	1.25	2	3.5	5.50	8	14	22	38
MAX CURRENT	8	19	27	37	48	62	88	115	160

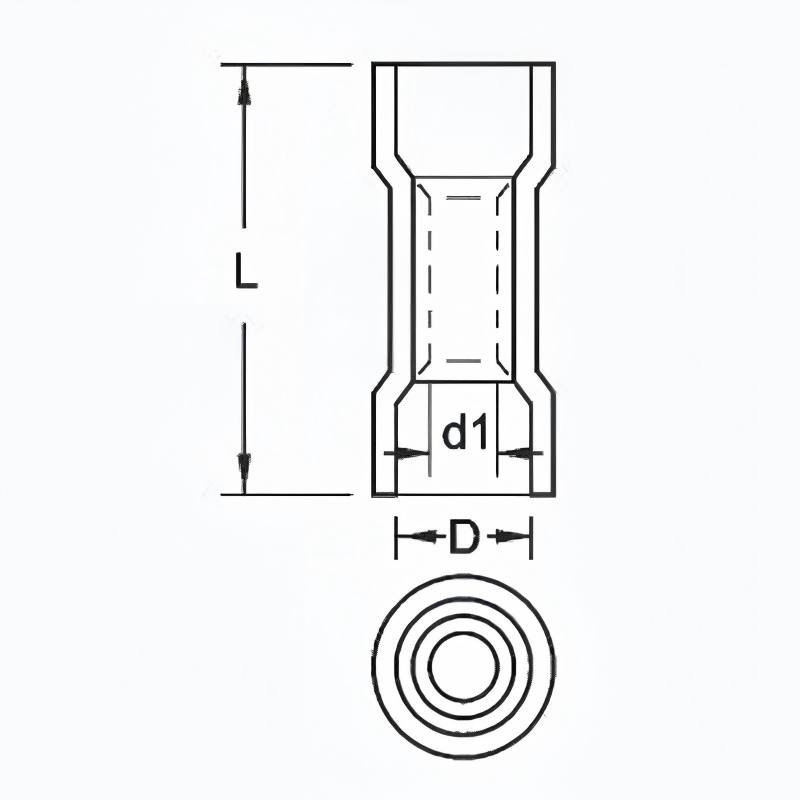

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)			Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	L	D	d1	Q’TY
22-16 A.W.G.,0.5-1.5 mm²	PVT1.25	16.5	4	1.7	1000
16-14 A.W.G.,1.5-2.5 mm²	PVT2	16.5	4.5	2.3	1000
12-10 A.W.G.,4-6 mm²	PVT5.5	20.2	6.3	3.4	500
8 A.W.G.,8 mm2	PVT8	24	8.5	4.5	200
6 A.W.G.,14 mm²	PVT14	30	10.5	5.9	200
4 A.W.G.,22 mm²	PVT22	37	12.4	7.8	200
2 A.W.G.,38 mm²	PVT38	39.5	15.5	9.5	100
