PEEPHOLE COPPER TUBULAR LUGS(LYF SERIES)

LYF Series peephole copper tubular lugs feature tin-plated copper construction, easy wire inspection, reliable crimping, and secure cable connections.

TERMINAL BODY: COPPER
PLATING: TIN

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	10	16	25	35	50	70	95	120	150	185	240
MAX CURRENT	70	95	125	170	230	265	310	360	445	505	545

ITEM NO.	DIMENSION(mm)

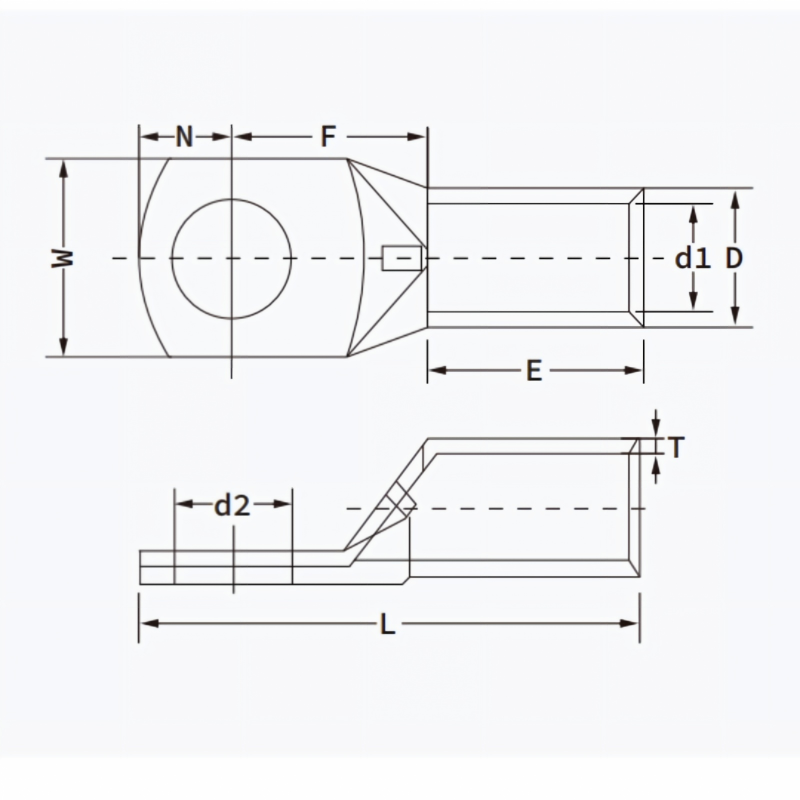

ITEM NO.	d2	W	N	F	L	E	D	d1	T
LYF10-6	6.5	11.5	6	8.3	30	10.5	8	5.4	1.3
LYF10-8S	8.5	11.5	7	10.3	33
LYF10-8	8.5	13.5	7	10.3	33
LYF10-10	10.5	16	8	10	33.6
LYF16-6	6.5	13	5.5	8.5	31.5	11	9	6	1.5
LYF16-8	8.5	13	7	8.5	33
LYF16-10	10.5	16	9.5	11	38
LYF16-12	13	20	12	12.5	42
LYF25-6	6.5	15.8	5	10	35	11	11	8	1.5
LYF25-8	8.5	15.8	8	10	38
LYF25-10S	10.5	15.8	10	12	42
LYF25-10	10.5	17	10	12	42
LYF25-12	13	20	12	13	45
LYF35-6	6.5	17	7	10	40	14	12.4	9	1.7
LYF35-8	8.5		8	11	42
LYF35-10	10.5		10	11	44
LYF35-12	13	22	12	17	52
LYF50-6	6.5	21	7	11	44	17	14.4	11	1.7
LYF50-8	8.5		8	12	46
LYF50-10	10.5		11	13	50
LYF50-12	13	22	12	15	53
LYF70-8	8.5	25	9.5	16.5	58	21	17	13	2
LYF70-10	10.5		11	15
LYF70-12	13		12	14
LYF70-14	15	28	15	17	64
LYF70-16	17	28	15	17	64
LYF95-10	10.5	29	11	21	69	24	20	15	2.5
LYF95-12	13		15	17
LYF95-14	15
LYF95-16	17
LYF120-10	10.5	31	12	20	73	27.2	22	17	2.5
LYF120-12	13		15	17
LYF120-14	15
LYF120-16	17
LYF150-10	10.5	36	15	17	80	31	25	19	3
LYF150-12	13
LYF150-14	15
LYF150-16	17
LYF150-20	21		19	20	87
LYF185-10	10.5	39	15	19	86	35	27	21	3
LYF185-12	13				86
LYF185-14	15				96
LYF185-16	17				95
LYF185-20	21	44	19	22	95	35	30	24	3
LYF240-10	10.5		15	26
LYF240-12	13		19	22
LYF240-14	15
LYF240-16	17
LYF240-20	21
