NARROW HEAD COPPER TUBULAR LUGS(TM SERIES)

TM Series narrow head copper tubular lugs feature tin-plated copper construction, easy wire inspection, reliable crimping, and secure cable connections.

TERMINAL BODY: COPPER
PLATING: TIN

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	35	50	70	95	120	150	185	240
MAX CURRENT	170	230	265	310	360	445	505	545

ITEM NO.	DIMENSION(mm)

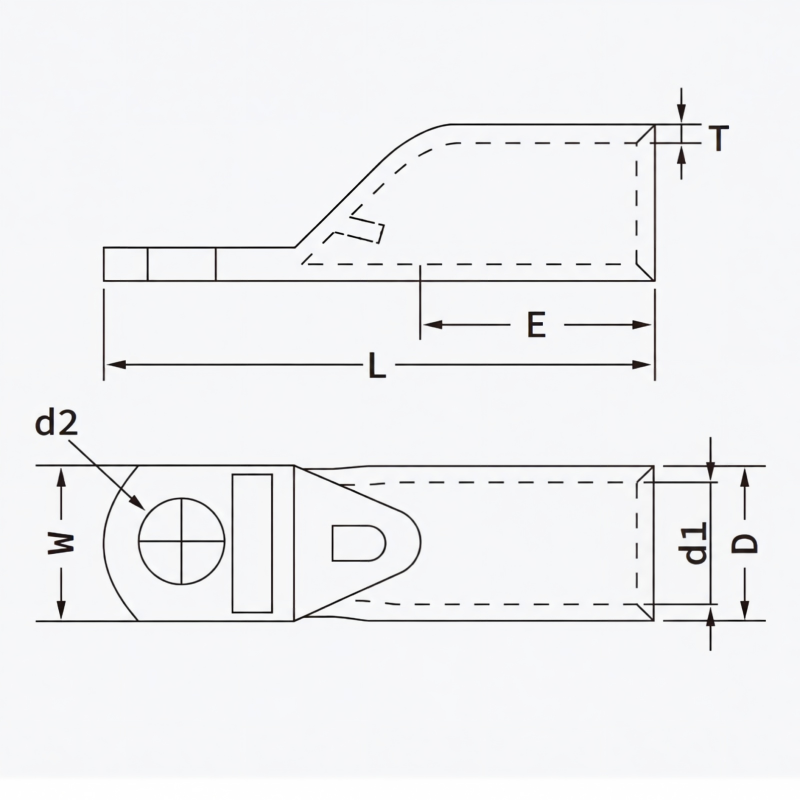

ITEM NO.	d2	W	L	E	D	d1	T
TM35-6	6.5	11.5	40.5	16	10.4	8.2	1.1
TM35-8	8.5	11.5	40.5	16	10.4	8.2	1.1
TM50-8	8.5	12.8	45.5	18	12.4	9.8	1.3
TM50-10	10.5	12.8	45.5	18	12.4	9.8	1.3
TM70-8	8.5	12.8	49	19	14.7	11.9	1.4
TM70-10	10.5	12.8	49	19	14.7	11.9	1.4
TM95-8	8.5	15.5	51	22	17.1	13.5	1.7
TM95-10	10.5	15.5	51	22	17.1	13.5	1.7
TM120-8	8.5	19	68	29	20	16	2
TM120-10	10.5	19	68	29	20	16	2
TM150-8	8.5	19	75	30	21.6	17	2.3
TM150-10	10.5	19	75	30	21.6	17	2.3
TM185-10	10.5	24.5	79	32.5	24	19	2.5
TM185-12	13	24.5	79	32.5	24	19	2.5
TM240-10	10.5	29.8	86	37	26	21	2.5
TM240-12	13	29.8	86	37	26	21	2.5
