PEEPHOLE COPPER TUBULAR LUGS(SC SERIES)

MAXIMUM ELECTRIC CURRENT: SPEC 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 600 120 MAX CURRENT 18 30 35 50 70 95 125 170 230 265 310 360 440 505 545 620 785 935 1065 360 24 ITEM NO. DIMENSION(mm) d2 W F L E […]

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.5	2.5	4	6	10	16	25	35	50	70	95	120	150	185	240	300	400	500	600	120
MAX CURRENT	18	30	35	50	70	95	125	170	230	265	310	360	440	505	545	620	785	935	1065	360
















												24

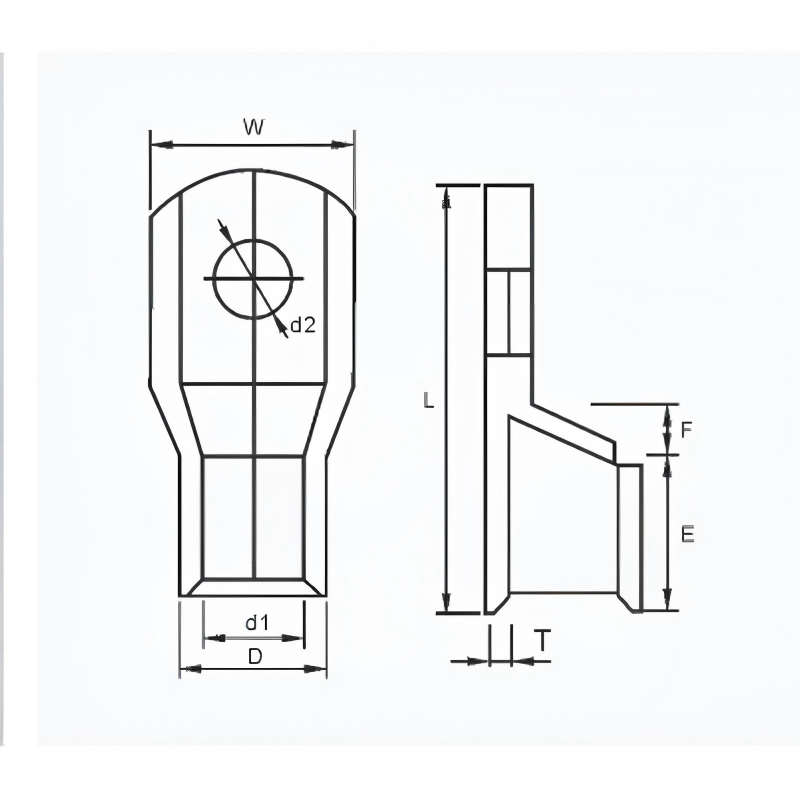

ITEM NO.	DIMENSION(mm)
ITEM NO.	d2	W	F	L	E	D	d1	T
SC1.5-4	4.3	7.5	1.2	18	5	3.3	1.9	0.7
SC1.5-5	5.3	7.5
SC1.5-6	6.5	9
SC2.5-4	4.3	7.5	1.2	20	7	4	2.6	0.7
SC2.5-5	5.3	7.5
SC2.5-6	6.5	9
SC4-4	4.3	9	1.2	20	7	4.8	3.4	0.7
SC4-5	5.3
SC4-6	6.5
SC4-8	8.5	12		23
SC6-5	5.3	9	1.2	23	9	5.5	3.9	0.8
SC6-6	6.5	9
SC6-8	8.5	12
SC6-10	10.5	15		27.5
SC10-6	6.5	10.3	1.5	25	9.5	6.2	4.6	0.8
SC10-8	8.5	12.3	1.5	25	9.5		4.6
SC10-10	10.5	14	1.5	28	9.5		5.4
SC16-6	6.5	11.5	2	31	12	7.3	5.7	0.8
SC16-8	8.5	11.5
SC16-10	10.5	14
SC16-12	12.5	16		33.5
SC25-6	6.5	13	2.5	34	13.5	9	7	1
SC25-8	8.5	13
SC25-10	10.5	15
SC25-12	13	18		35.5
SC35-6	6.5	15	3.5	38	15	10.5	8.2	1.15
SC35-8	8.5
SC35-10	10.5
SC35-12	13	17
SC50-6	6.5	18	5	43.5	17	12.4	9.8	1.3
SC50-8	8.5
SC50-10	10.5
SC50-12	13
SC50-16	17	22		49
SC70-8	8	21.7	5	50	19	14.5	11.5	1.5
SC70-10	10.5
SC70-12	13
SC70-14	15	22	5		19	14.7	11.9
SC70-16	17	22	5		19	14.7	11.9
SC95-8	8.5	25	6	55	22	17	13.4	1.8
SC95-10	10.5
SC95-12	13
SC95-14	15
SC95-16	17
SC120-8	8.5	27	7	62	25	19	15	2
SC120-10	10.5
SC120-12	13
SC120-14	15
SC120-16	17
SC150-8	8.5	30	8	69	27	21	16.6	2.2
SC150-10	10.5
SC150-12	13
SC150-14	15
SC150-16	17
SC185-10	10.5	34.3	12	78	32	24	19	2.5
SC185-12	13
SC185-14	15
SC185-16	17	34.3	12	78	32	24	19	2.5
SC185-18	18.5	34.3	12	78	32	24	19	2.5
SC240-10	10.5	38	12	92	39	26	21	2.5
SC240-12	13
SC240-14	15
SC240-16	17
SC240-18	18.5
SC240-20	21
SC300-10	10.5	43	15	101	43	30	24	3
SC300-12	13
SC300-14	15
SC300-16	17
SC300-18	18.5
SC300-20	21
SC400-12	13	49	17	114	48	34	27	3.5
SC400-14	15
SC400-16	17
SC400-20	21
SC500-16	17	56	20	124	50	38	30	4
SC500-20	21	56	20	124	50	38	30	4
SC630-16	17	64	22	144	56	45	35	5
SC630-20	21	64	22	144	56	45	35	5
