NYLON-INSULATED(EASY ENTRY) LOCKING SPADE TERMINALS（LSNY SERIES）

LSNY Series nylon-insulated easy entry locking spade terminals feature copper conductors, 600V/105°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G:YELLOW

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

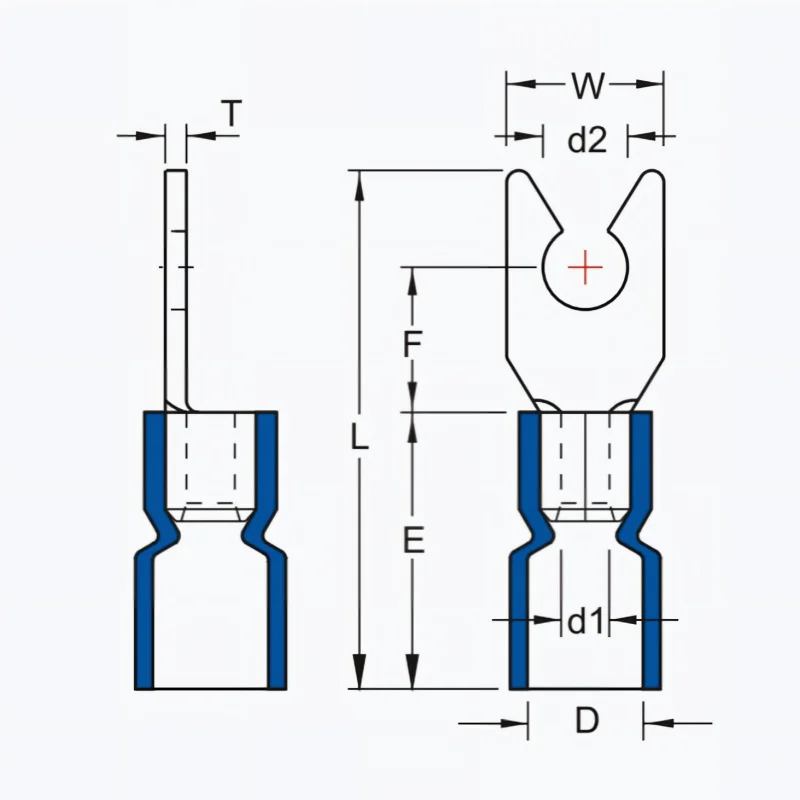

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	LSNY1.25-3.7	#6	3.7	6.4	6.5	22.1	11.0	4.0	1.7	0.7	1000
	LSNY1.25-4S	#8	4.3	7.2							1000
	LSNY1.25-4L	#8	4.3	8.1							1000
	LSNY1.25-5S	#10	5.3.	8.1							1000
	LSNY1.25-5L	#10	5.3	9.5							1000
16-14 A.W.G. 1.5-2.5 mm²	LSNY2-3.7	#6	3..7	6.0	6.5	23.1	11.0	4.5	2.3	0.8	1000
	LSNY2-4	#8	4.3	7.2							1000
	LSNY2-4L	#8	4.3	8.1							1000
	LSNY2-5S	#10	5.3	8.1							1000
	LSNY2-5L	#10	5.3	9.3							1000
12-10 A.W.G. 4-6 mm²	LSNY5.5-3.7	#6	3.7	8.3	7.0	25.2	13.0	6.4	3.4	1.0	500
	LSNY5.5-4	#8	4.3	8.3							500
	LSNY5.5-5	#10	5.3	9.0							500
	LSNY5.5-6	1/4	6.4	12.0	12.0	31.5					500
