NYLON-INSULATED(EASY ENTRY) HOOK TERMINALS（HNY SERIES）

HNY Series nylon-insulated easy entry hook terminals feature copper conductors, 600V/105°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G.:YELLOW

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

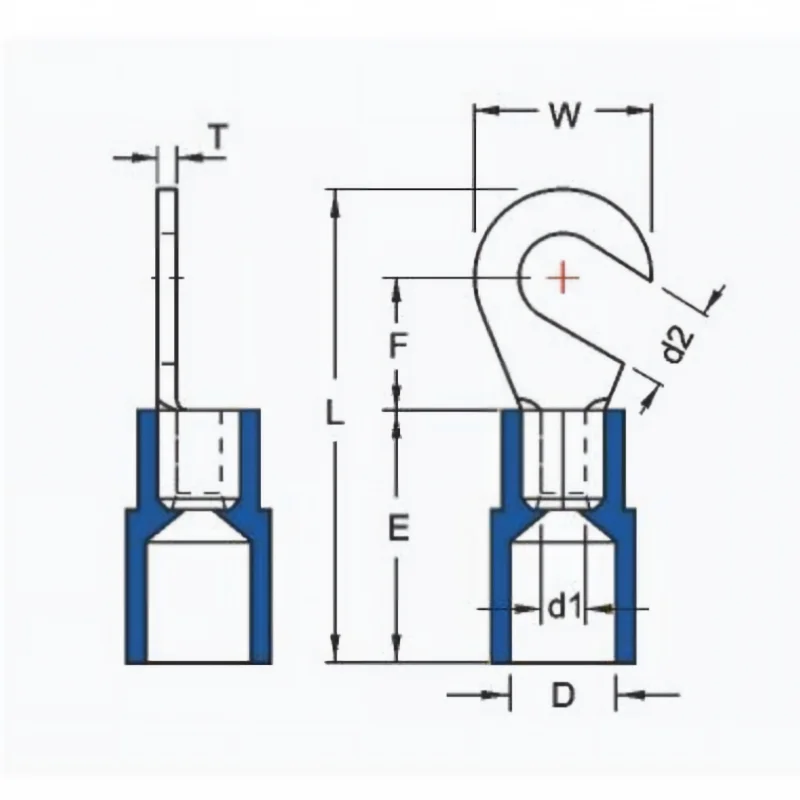

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	HNY1.25-3.7	#6	3.7	8.0	7.0	22.1	11.0	4.0	1.7	0.7	1000
	HNY1.25-4	#8	4.3								1000
	HNY1.25-5	#10	5.3								1000
	HNY1.25-6	1/4	6.4	11.6	11.0	27.2					1000
16-14 A.W.G.1.5-2.5 mm²	HNY2-3.7	#6	3.7	12.0	11.0	23.2	11.0	4.5	2.3	0.8	1000
	HNY2-4	#8	4.3	12.0	11.0						1000
	HNY2-5	#10	5.3	9.5	7.3						1000
	HNY2-6	1/4	6.4	8.5	7.4	28.2					1000
12-10 A.W.G4-6 mm²	HNY5.5-3.7	#6	3.7	7.2	6.1	23.5	13.0	6.4	3.4	1.0	500
	HNY5.5-4	#8	4.3	9.5	9.5	27					500
	HNY5.5-5	#10	5.3	9.5	9.5	27					500
	HNY5.5-6	1/4	6.4	12.0	10.3	30.4					500
	HNY5.5-8	5/16	8.4	15.0	13.5	36.6					500
