NYLON-INSULATED DOUBLE CRIMP FLANGE SPADE TERMINALS（FSNYD SERIES）

FSNYD Series nylon-insulated easy entry double cpimp flange spade terminals feature copper conductors, 600V/105°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,12-10A.W.G:YELLOW

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

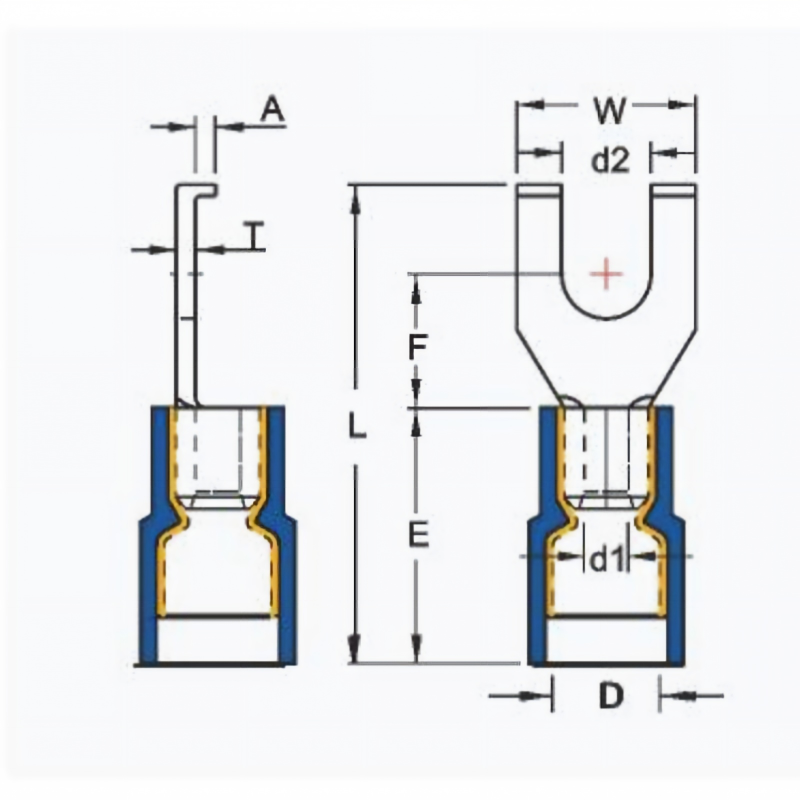

WIRE RANGE A.W.G. mm²	ITEM NO.	STUD SIZE		DIMENSION(mm)								Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	d2		W	F	L	E	D	d1	A	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	FSNYD1.25-3.7	#6	3.7	7.5	5.1	20.2	11	4.5	1.7	1.5	0.7	1000
	FSNYD1.25-4	#8	4.3	7.5	5.1	20.2						1000
	FSNYD1.25-4L	#8	4.3	8.5	7.2	25.7						1000
	FSNYD1.25-5	#10	5.3	7.5	5.1	20.2						1000
16-14 A.W.G. 1.5-2.5 mm²	FSNYD2-3.7	#6	3.7	7.5	5.2	20.7	11	5.2	2.3	1.5	0.8	1000
	FSNYD2-4	#8	4.3	7.5	5.2	20.7						1000
	FSNYD2-5	#10	5.3	7.5	5.2	20.7						1000
	FSNYD2-5L	#10	5.3	8.5	7.2	24.2						1000
12-10 A.W.G. 4-6 mm²	FSNYD5.5-3.7	#6	3.7	8.5	7.5	27	13	7	3.4	1.5	1	500
	FSNYD5.5-4	#8	4.3	8.5	7.5	27						500
	FSNYD5.5-5	#10	5.3	8.5	7.5	27						500
