NYLON-INSULATED DOUBLE CRIMP BLADE TERMINALS（DBNYD SERIES）

DBNYD Series nylon-insulated easy entry double cpimp blade terminals feature copper conductors, 600V/105°C PVC insulation, and secure crimp connections for reliable industrial wiring applications.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE,12-10A.W.G:YELLOW

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	19	27	48

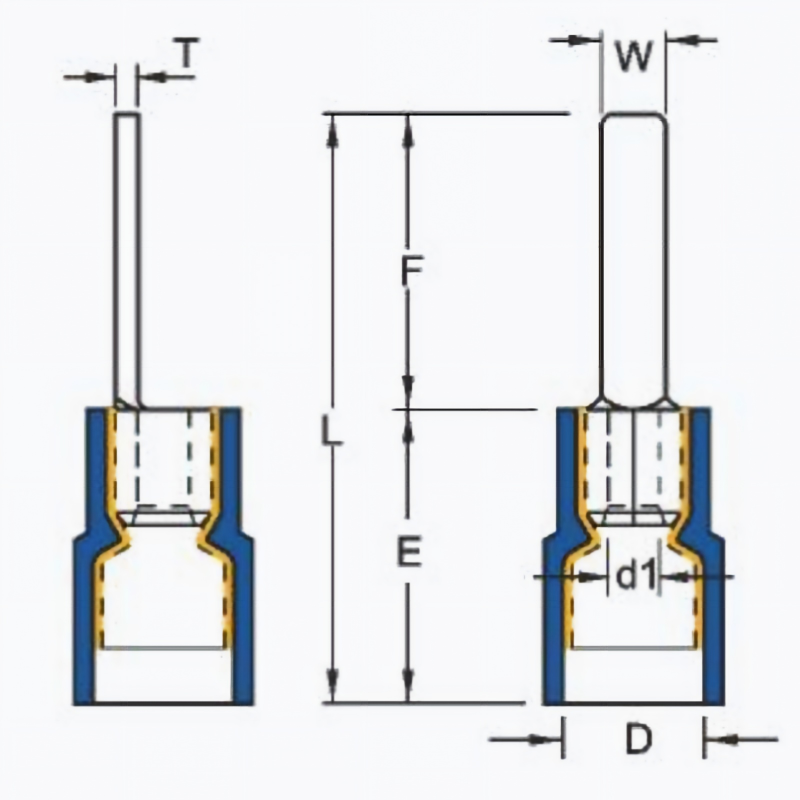

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(mm)							Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	d1	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	DBNYD1.25-10	2.3	10	20.9	11	4.5	1.7	0.7	1000
	DBNYD1.25-14	3	14	25					1000
	DBNYD1.25-18	2.2	18	29					1000
16-14 A.W.G. 1.5-2.5 mm²	DBNYD2-10	2.3	10	20.9	11	5.2	2.3	0.8	1000
	DBNYD2-14	3	14	25					1000
	DBNYD2-18	2.2	18	29					1000
12-10 A.W.G. 4-6 mm²	DBNYD5.5-10	2.8	10	23	13	7	3.4	1	500
	DBNYD5.5-14	4	14	26.9					500
	DBNYD5.5-18	4.5	18	32.6					500
