NYLON-FULLY INSULATED BUTT SPLICE CONNECTORS(BNYTF SERIES)

BNYTF Series nylon-fully insulated butt splice connectors feature copper conductors, 600V/105°C nylon insulation, and secure crimp connections for durable industrial wire splicing and electrical installations.

MAXIMUM ELECTRICAL RATING: 105 ℃ 600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL BODY: COPPER

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	0.5	1.25	2	5.5
MAX CURRENT	8	19	27	48

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)			Q’TY

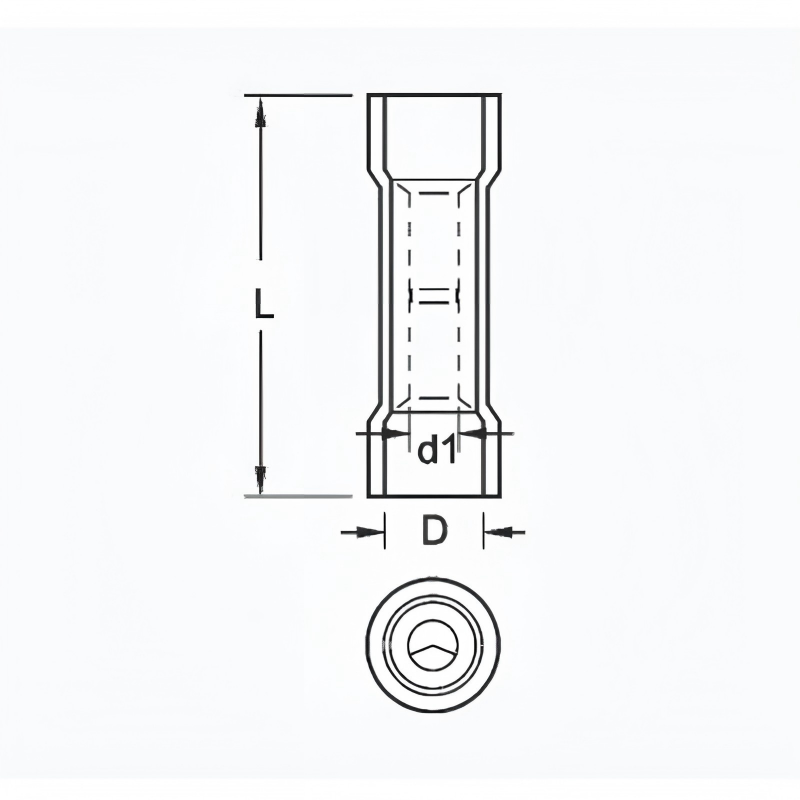

WIRE RANGE A.W.G. mm²	ITEM NO.	L	D	d1	Q’TY
26-22 A.W.G. 0.2-0.5 mm²	BNYTF0.5	20	2	1.3	1000
22-16 A.W.G. 0.5-1.5 mm²	BNYTF1.25	25.2	4	1.7	1000
16-14 A.W.G. 1.5-2.5 mm²	BNYTF2	25.2	4.5	2.3	1000
12-10 A.W.G. 4-6 mm²	BNYTF5.5	28.2	6.3	3.4	500
