HOM MOUTH PEEPHOLE COPPER TUBULAR LUGS(TT SERIES)

MAXIMUM ELECTRIC CURRENT: SPEC 10 16 25 35 50 70 95 120 150 185 240 MAX CURRENT 70 95 125 170 230 265 310 360 445 505 545 ITEM NO. DIMENSION(mm) d2 W L E D d1 T TT10-6 6.4 11.9 28 10 6.9 4.7 1.1 TT10-8 8.3 13.5 31 TT16-6 6.4 11.9 33 17 […]

TERMINAL BODY: COPPER

PLATING: TIN

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	10	16	25	35	50	70	95	120	150	185	240
MAX CURRENT	70	95	125	170	230	265	310	360	445	505	545

ITEM NO.	DIMENSION(mm)

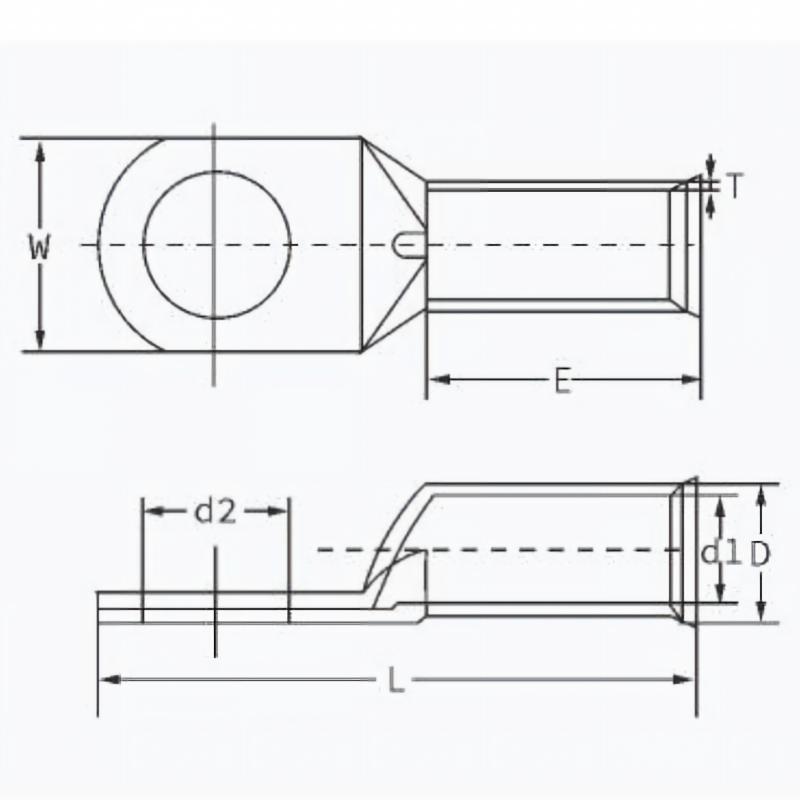

ITEM NO.	d2	W	L	E	D	d1	T
TT10-6	6.4	11.9	28	10	6.9	4.7	1.1
TT10-8	8.3	13.5	31	10	6.9	4.7	1.1
TT16-6	6.4	11.9	33	17	7.8	5.6	1.1
TT16-8	8.3	13.5	37
TT16-10	10.5	16	38
TT25-8	8.3	14	39	18	9.5	7.1	1.2
TT25-10	10.5	16	42	18	9.5	7.1	1.2
TT35-8	8.3	16.5	42	19	11	8.2	1.4
TT35-10	10.5	16.5	46	19	11	8.2	1.4
TT50-10	10.5	17.9	51	22	12.5	9.5	1.5
TT50-12	13	17.9	51	22	12.5	9.5	1.5
TT70-10	10.5	22	54	22	15	11.5	1.75
TT70-12	13	22	54	22	15	11.5	1.75
TT95-14	14.5	24.7	72	27	17	13.5	1.75
TT95-16	16.5	24.7	72	27	17	13.5	1.75
TT120-14	14.5	28.9	74	29	20	15.6	2.2
TT120-16	16.5	28.9	74	29	20	15.6	2.2
TT150-14	14.5	30.4	84	38	21	16.5	2.25
TT150-16	16.5	30.4	84	38	21	16.5	2.25
TT185-16	16.5	34	92	42	23.6	18.4	2.6
TT240-16	16.5	38.5	98	45	26.4	21.2	2.6
