CL 2H SERIES

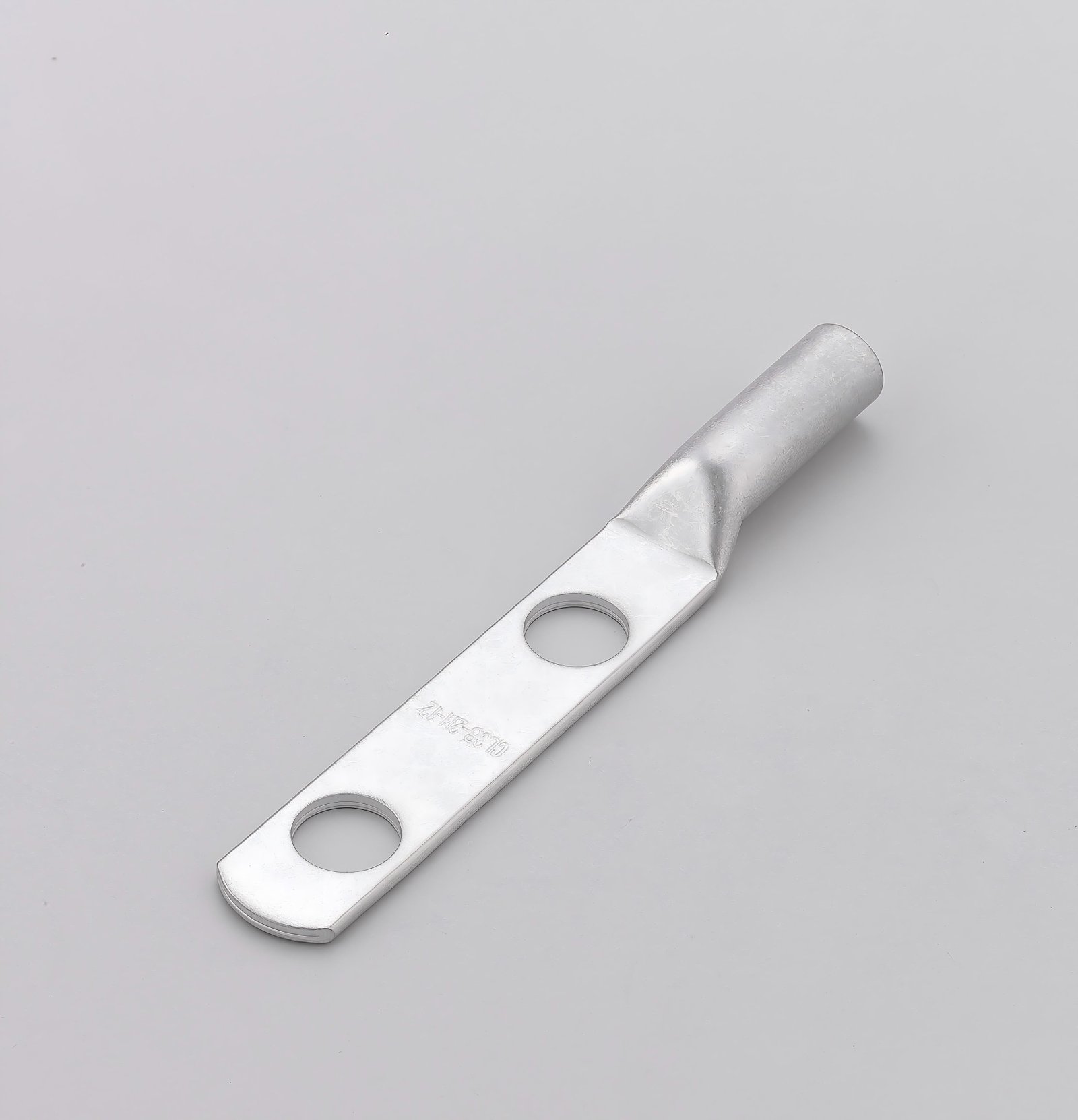

DOUBLE HOLES COPPER TUBULAR LUGS(CL-2H SERIES)

CL-2H Series double-hole copper tubular lugs feature tin-plated copper, high current capacity, and secure crimping for reliable power cable connections.

TERMINAL BODY: COPPER
PLATING: TIN

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	14	22	38	60	80	100	125	150	185	200	250	325	400	500
MAX CURRENT	95	125	170	230	310	335	360	445	505	510	545	620	785	935

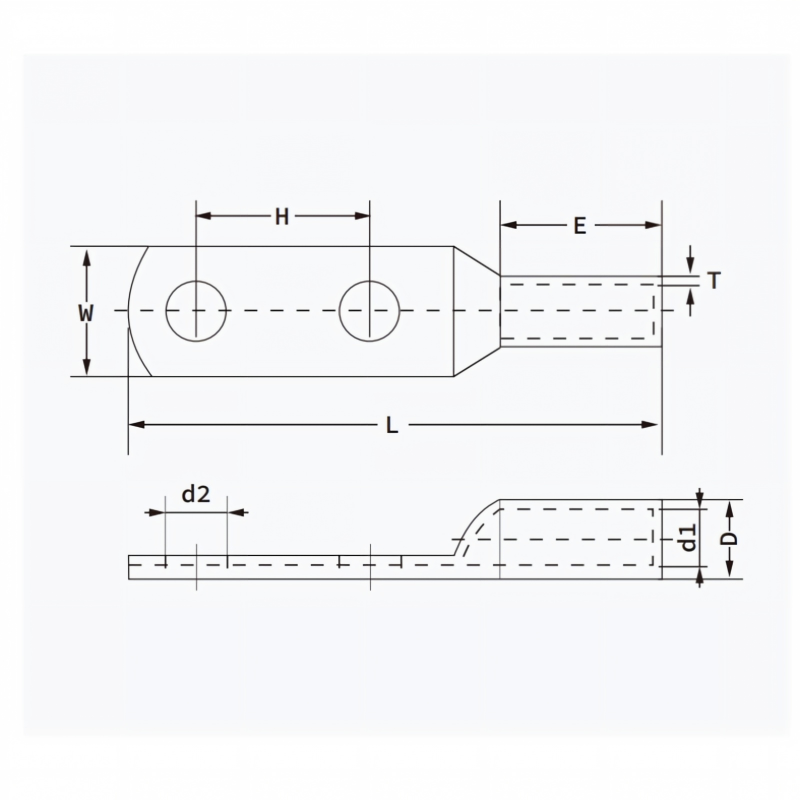

ITEM NO.	DIMENSION(mm)
ITEM NO.	d2	W	H	L	E	D	d1	T
CL14-6-2H	6.4	13	45	117.5	28.5	8.8	5.8	1.5
CL22-8-2H	8.4	16	45	119.2	28.5	11.3	7.7	1.8
CL38-10-2H	10.5	18.3	45	120	31.7	12.4	9.8	1.3
CL38-12-2H	13	18.3	45	120	31.7	12.4	9.8	1.3
CL60-10-2H	10.5	20.5	45	130	40	14	11	1.5
CL60-12-2H	13	20.5	45	130	40	14	11	1.5
CL70-10-2H	10.5	21.4	45	130	40	15	12	2
CL70-12-2H	13	21.4	45	130	40	15	12	2
CL80-12-2H	13	23.2	45	130	40	16	13	1.5
CL100-12-2H	13	26	45	132	42	18	14	2
CL125-12-2H	13	29	45	135	42	20	16	2
CL150-12-2H	13	31	45	150	50	22	17	2.5
CL180-12-2H	13	33	45	150	50	23	18.2	2.4
CL200-12-2H	13	37	45	150	52.5	26	20	3
CL250-12-2H	13	40	45	150	50	28	22	3
CL325-12-2H	13	46	45	180	68	32	25	3.5
CL400-12-2H	13	54	45	180	60	37	30	3.5
CL500-12-2H	13	57.5	45	180	60	40	31	4.5
