CLOSED END CONNECTORS (CE SERIES)

CE Series closed end connectors feature nylon insulation, tin-plated copper terminals, and secure crimp connections for reliable electrical wiring.

Description

MAXIMUM ELECTRIC CURRENT:

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION (inch mm)					Q’TY	COLOR

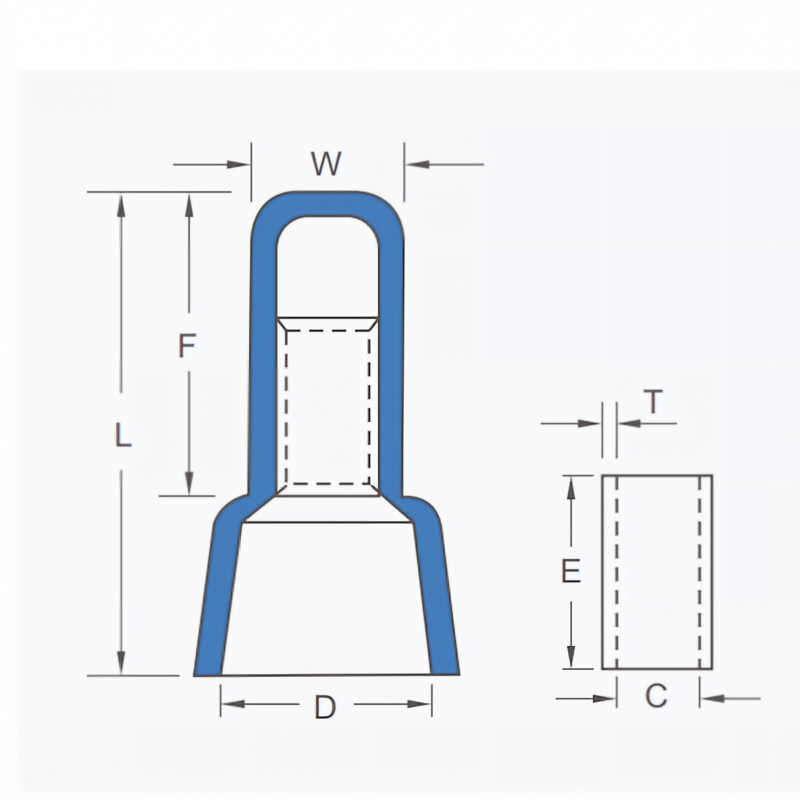

WIRE RANGE A.W.G. mm²	ITEM NO.	W	L	D	T	C	Q’TY	COLOR
1.5(22-16)	CE1.25	5	21	8	0.5	2.3	500	WHITE
2.5(16-14)	CE2	5.5	21	8	0.45	3.1	500
4(12-10)	CE5.5	7.5	25.5	10	0.7	4	500
10(8)	CE8	9.4	29.8	12	1.25	4.4	300

Tell us your specifications, quantity, or application scenario and we will reply with a tailored quote.
