Description
MAXIMUM ELECTRIC CURRENT:
| SPEC | 1.25 | 2 | 3.5 | 5.5 | 8 | 14 | 22 |
| MAX CURRENT | 19 | 27 | 37 | 48 | 62 | 88 | 115 |

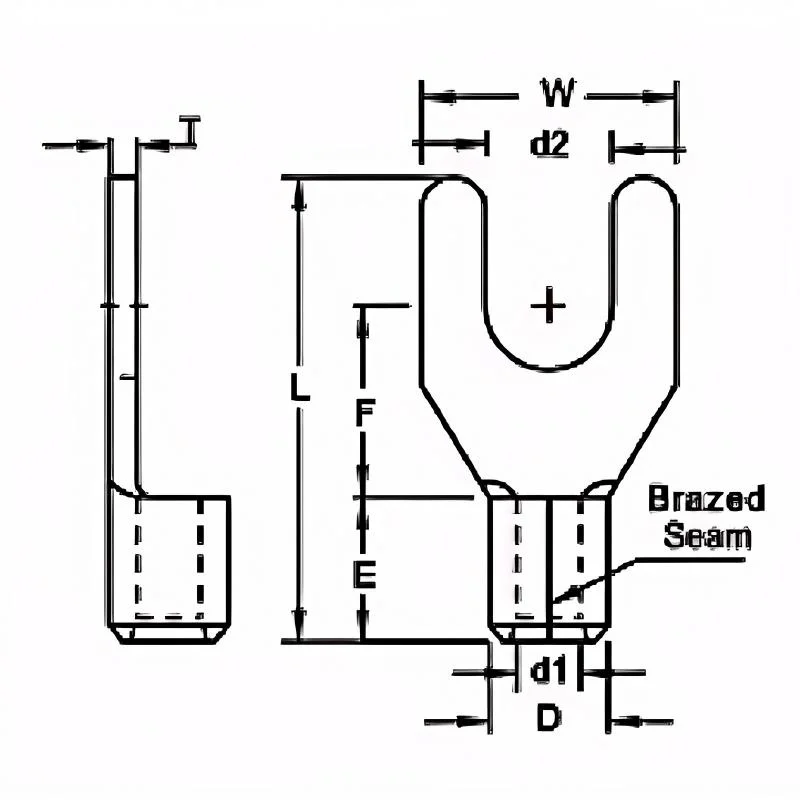

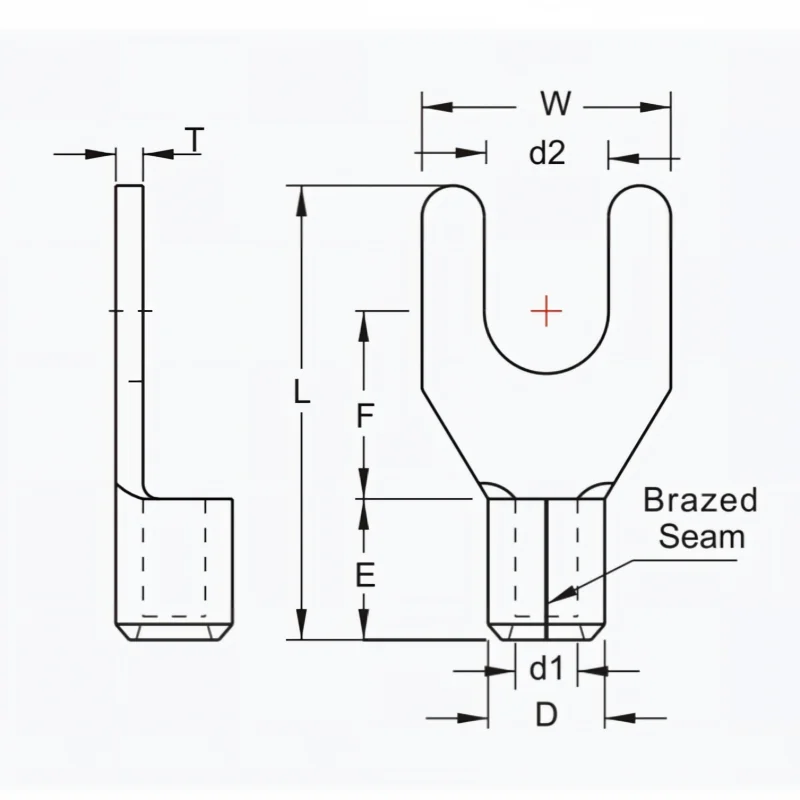

| WIRE RANGE A.W.G. mm² | ITEM NO. | STUD SIZE | DIMENSION(mm) | Q’TY | |||||||
| d2 | W | F | L | E | D | d1 | T | ||||
| 14-12 A.W.G. 2.5-4 | SNB3.5-3 | #4 | 3.2 | 5.7 | 6.8 | 17.6 | 5.5 | 5.1 | 2.9 | 1.0 | 1000 |
| SNB3.5-4 | #8 | 4.3 | 7.8 | 18.1 | 1000 | ||||||
| SNB3.5-5 | #10 | 5.3 | 1000 | ||||||||
| SNB3.5-6 | 1/4 | 6.4 | 11.9 | 9.6 | 20.8 | 1000 | |||||
| 12-10 A.W.G. 4-6 | SNB5.5-3.7 | #6 | 3.7 | 7.9 | 7.0 | 18.3 | 5.8 | 5.6 | 3.4 | 1.0 | 1000 |
| SNB5.5-4SS | #8 | 4.3 | 7.2 | 7.5 | 17.4 | 1000 | |||||
| SNB5.5-4S | #8 | 4.3 | 8.3 | 7.3 | 18.5 | 1000 | |||||
| SNB5.5-4L | #8 | 4.3 | 9.0 | 7.0 | 18.0 | 1000 | |||||
| SNB5.5-5 | #10 | 5.3 | 8.7 | 6.8 | 17.6 | 1000 | |||||
| SNB5.5-6S | 1/4 | 6.4 | 8.7 | 7.3 | 17.6 | 1000 | |||||
| SNB5.5-6L | 1/4 | 6.4 | 12.0 | 11.0 | 23.6 | 1000 | |||||
| SNB5.5-8 | 5/16 | 8.4 | 13.9 | 11.3 | 23.6 | 1000 | |||||
| 8 A.W.G. 8 | SNB8-4 | #8 | 4.3 | 9.0 | 7.8 | 20.1 | 7.7 | 7.2 | 4.5 | 1.2 | 500 |
| SNB8-5 | #10 | 5.3 | 500 | ||||||||
| SNB8-6 | 1/4 | 6.4 | 11.2 | 8.3 | 21.8 | 500 | |||||
| SNB8-8 | 5/16 | 8.4 | 14.5 | 11.4 | 27.1 | 500 | |||||
| 6 A.W.G. 14 | SNB14-4 | #8 | 4.6 | 11.0 | 9.8 | 27.5 | 10.0 | 9.0 | 5.8 | 1.4 | 200 |
| SNB14-5 | #10 | 5.6 | 200 | ||||||||
| SNB14-6 | 1/4 | 6.4 | 12.0 | 10.8 | 28.1 | 10.0 | 9.0 | 5.8 | 1.4 | 200 | |
| SNB14-8 | 5/16 | 8.4 | 14.5 | 11.3 | 28.5 | 200 | |||||
| 4A.W.G. 22mm² | SNB22-8 | 5/16 | 8.4 | 13.8 | 12.1 | 32.9 | 11.5 | 11.5 | 7.7 | 1.7 | 200 |
