DOUBLE HOLES COPPER CABLE LUGS(DT-2H SERIES)

DT-2H Series double-hole copper cable lugs provide high conductivity, secure crimping, and stable bolted connections for industrial power cable termination.

Description

MAXIMUM ELECTRIC CURRENT:

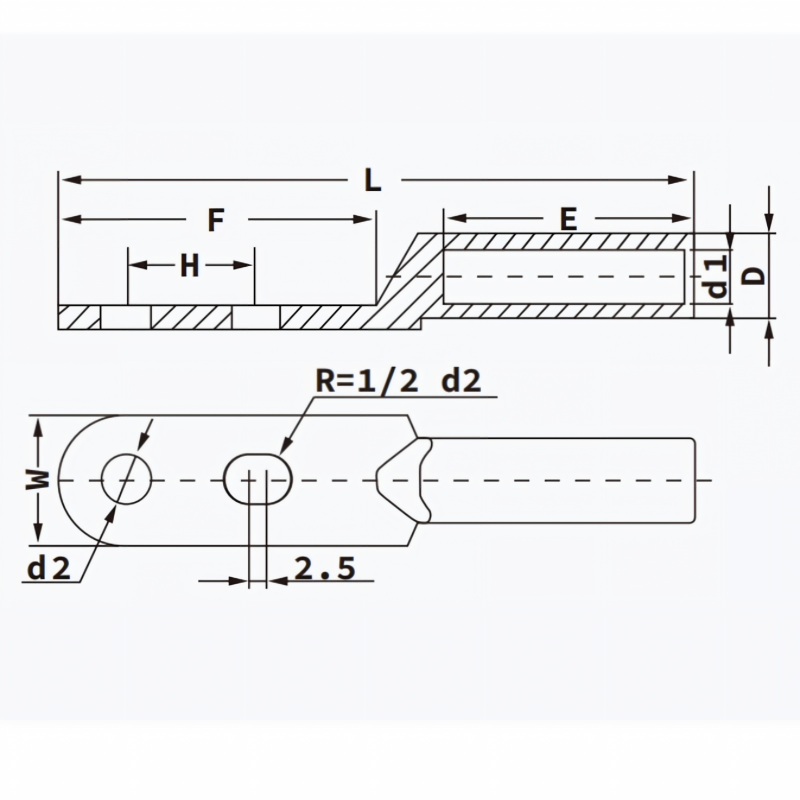

ITEM NO.	DIMENSION(mm)
ITEM NO.	d2	D	d1	E	L	W	F	H
DT10-8-2H	8.5	9	5.5	28	81	16	41	20
DT16-8-2H		10	6.5	32	87	16	41
DT25-8-2H		11	7.4	34	88	18	41
DT35-8-2H		12	8.4	37	100	23	48
DT50-8-2H		14	10	40	106	23	51
DT70-10-2H	10.5	16	11.8	43	118	28	56	25
DT95-10-2H	10.5	18	13.5	49	126	28	57	25
DT120-10-2H	13	20	15	50	138	34	66	30
DT150-10-2H	13	22	17	56	140	34	66	30
DT185-10-2H	13	25	19	56	152	40	70	35
DT240-10-2H	13	27	21	62	158	40	70	35
DT300-10-2H	17	30	23.5	65	176	45	82	40
DT400-10-2H	17	34	26	70	180	50	82	40
DT500-10-2H	17	38	29.2	82	218	60	100	45
DT630-10-2H	17	45	34.5	87	227	60	100	45
