DTL 2H SERIES

DOUBLE HOLES COPPER ALUMINUM CABLE LUGS(DTL-2H SERIES)

DTL-2H Series double-hole copper aluminum cable lugs provide reliable bimetal connections, secure crimping, and stable power cable termination.

Description

MAXIMUM ELECTRIC CURRENT:

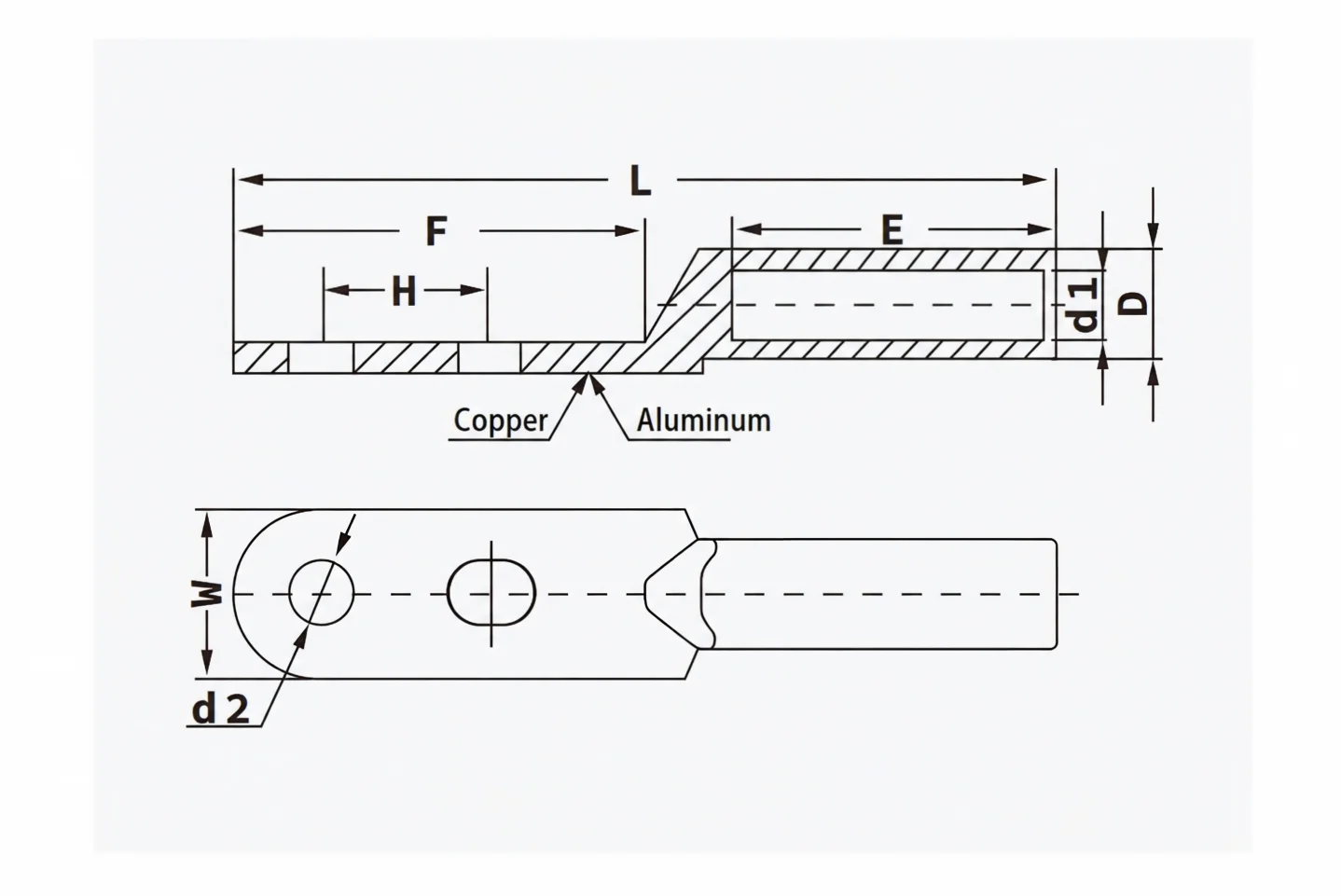

ITEM NO.	DIMENSION(mm)
ITEM NO.	d2	D	d1	E	L	W	F	H
DTL16-8-2H	8.5	11	6.5	32	90	18	43	20
DTL25-8-2H		12	7.4	36	95	18	44
DTL35-8-2H		14	8.4	40	107	23	50
DTL50-8-2H		16	10	41	110	23	50
DTL70-10-2H	10.5	18	11.8	47	128	28	59	25
DTL95-10-2H	10.5	21	13.5	51	138	28	62	25
DTL120-12-2H	13	23	15	56	152	34	72	30
DTL150-12-2H	13	25	17	57	155	34	70	30
DTL185-12-2H	13	27	19	60	167	40	80	35
DTL240-12-2H	13	30	21	62	172	40	80	35
DTL300-16-2H	17	34	23.5	66	195	50	98	40
DTL400-16-2H	17	38	26.5	72	205	50	97	40
DTL500-16-2H	17	42	29.2	77	235	60	116	45
