COPPER CABLE LUGS(DT SERIES)

DT Series copper cable lugs offer high conductivity, strong crimp connections, and durable performance for power distribution and industrial cable termination.

Description

MAXIMUM ELECTRIC CURRENT:

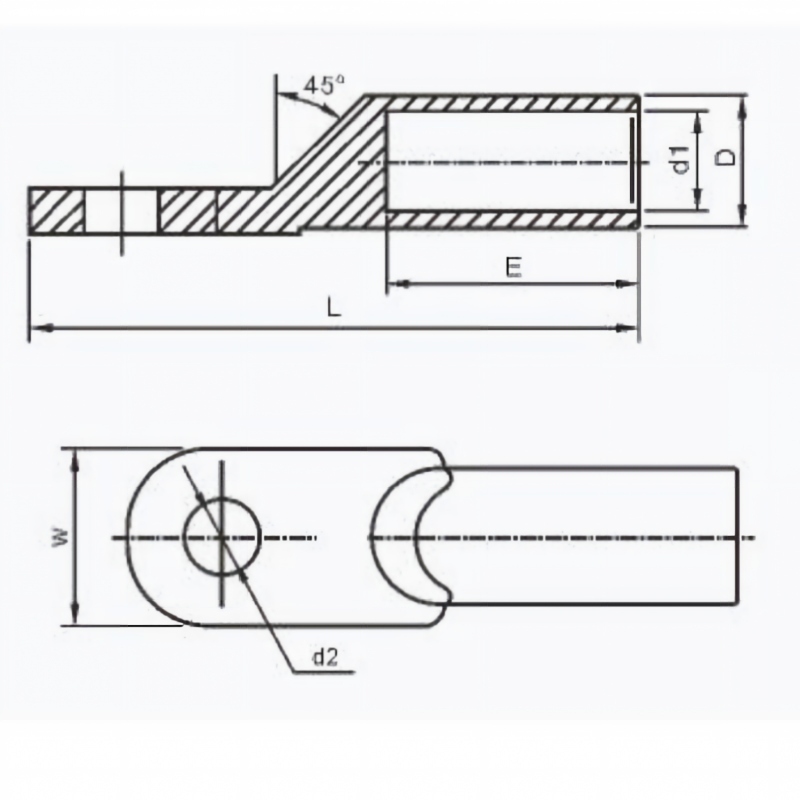

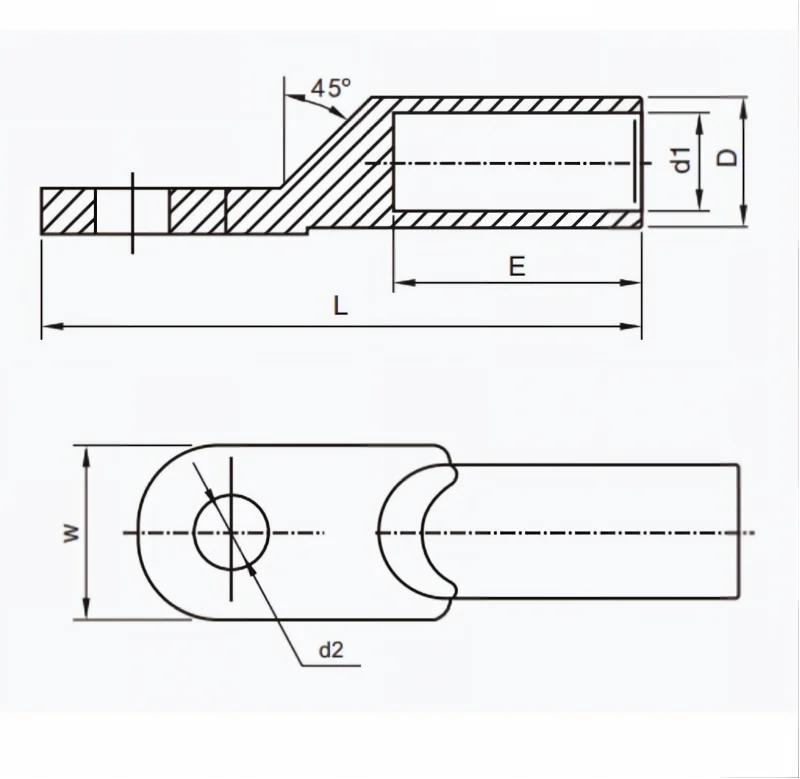

ITEM NO.	DIMENSION(mm)
ITEM NO.	d2	D	d1	L	E	W
DT-10	8.5	9	5.5	62	28	15.8
DT-16		10	6.5	68	32	15.8
DT-25		11	7.4	70	34	18
DT-35	10.5	12	8.4	80	37	19.7
DT-50	10.5	14	10	85	40	23
DT-70	13	16	11.8	95	43	26
DT-95	13	18	13.5	104	49	28
DT-120	15	20	15	112	50	30
DT-150	15	22	17	120	56	34
DT-185	17	25	19	125	56	37
DT-240	17	27	21	136	62	40
DT-300	21	31	23.5	158	68	50
DT-400		34	27	160	70	50
DT-500		38	29.2	186	82	60
DT-630		45	34.5	215	85	60
