Description
MAXIMUM ELECTRIC CURRENT:
| SPEC | 1.25 | 2 | 5.5 |
| MAX CURRENT | 10 | 15 | 24 |

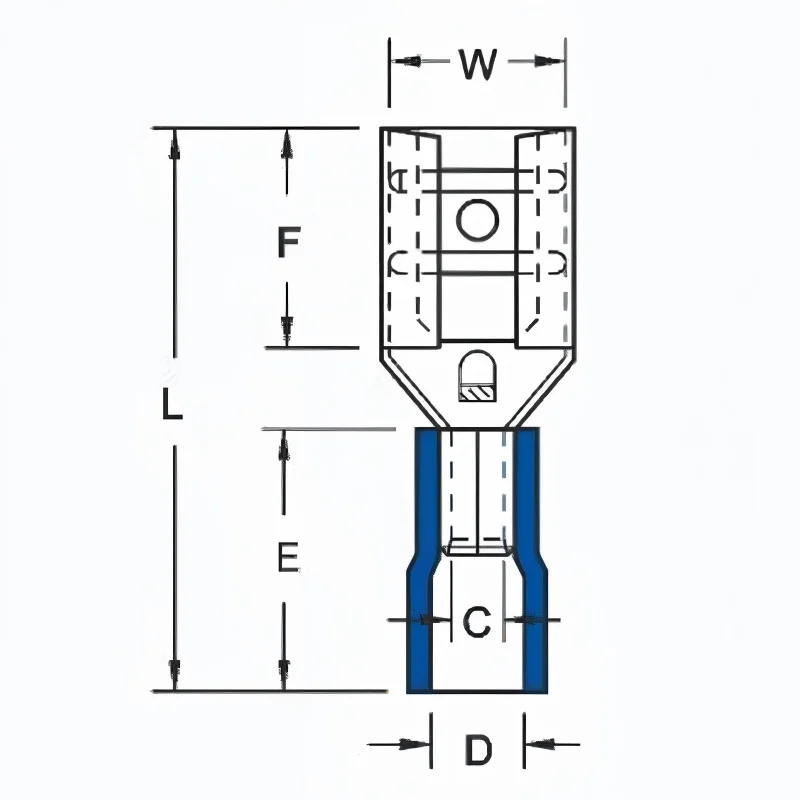

| WIRE RANGE A.WG. mm² | ITEM NO. | NEMA TAB | DIMENSION(inch mm) | Q’TY | |||||
| W | F | L | E | D | T | ||||
| 22-16 A.W.G. 0.5-1.5 | FDV1.25-110(5) | 0.5×2.8 | 3.2 | 6.5 | 18.6 | 10.0 | 3.5 | 0.3 | 1000 |
| FDV1.25-110(8) | 0.8×2.8 | 1000 | |||||||
| FDV1.25-187(5) | 0.5×4.75 | 5.0 | 6.4 | 19.0 | 0.35 | 1000 | |||
| FDV1.25-187(8) | 0.8×4.75 | 1000 | |||||||
| FDV1.25-205(5) | 0.5×5.2 | 5.7 | 5.8 | 18.5 | 1000 | ||||
| FDV1.25-205(8) | 0.8×5.2 | 1000 | |||||||
| FDV1.25-250 | 0.8×6.35 | 6.6 | 7.5 | 20.5 | 0.4 | 1000 | |||
| FDV1.25-312 | 0.8×8.0 | 8.2 | 10.0 | 24.2 | 1000 | ||||
| 16-14 A.W.G. 1.5-2.5 | FDV2-110(5) | 0.5×2.8 | 3.2 | 6.5 | 18.6 | 10.0 | 4.5 | 0.3 | 1000 |
| FDV2-110(8) | 0.8×2.8 | 1000 | |||||||
| FDV2-187(5) | 0.5×4.75 | 5.0 | 6.4 | 19.0 | 0.35 | 1000 | |||
| FDV2-187(8) | 0.8×4.75 | 1000 | |||||||
| FDV2-205(5) | 0.8×5.2 | 5.7 | 5.8 | 18.5 | 1000 | ||||
| FDV2-205(8) | 0.8×5.2 | 1000 | |||||||
| FDV2-250 | 0.8×6.35 | 6.6 | 7.5 | 20.5 | 0.4 | 1000 | |||
| FDV2-312 | 0.8×8.0 | 8.2 | 10.0 | 24.2 | 1000 | ||||
| FDV2-375 | 1.2×9.4 | 10.0 | 12.0 | 25.5 | 0.5 | 1000 | |||
| 1210A.W.G. 4-6 mm² | FDV5.5-250 | 0.8×6.35 | 6.6 | 7.5 | 23.5 | 13.0 | 5.5 | 0.4 | 500 |
| FDV5.5-375 | 1.2×9.4 | 10.0 | 12.0 | 28.5 | 0.5 | 500 | |||
