VINYL-INSULATED DOUBLE CRIMP MALE DISCONNECTORS(MDD SERIES)

MDD Series vinyl-insulated double crimp female disconnectors with brass terminals, 600V/75°C rating, ensuring secure and durable crimp connections for industrial wiring systems.

MAXIMUM ELECTRICAL RATING: 75 ℃ 600 VOLTS MAX

INSULATION MATERIAL: VINYL

TERMINAL MATERIAL: BRASS

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

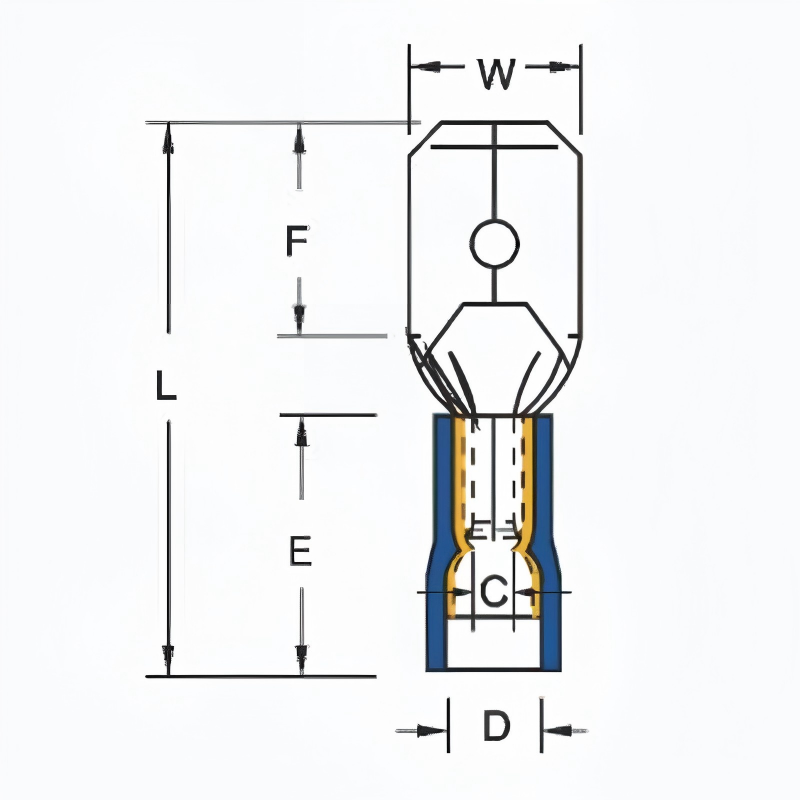

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MDD1.25-110(5)	0.5×2.8	2.8	6.5	18.5	10	4	0.5	1000
	MDD1.25-110(8)	0.8×2.8	2.8		18.5			0.4	1000
	MDD1.25-187(5)	0.5×4.75	4.8		19			0.5	1000
	MDD1.25-187(8)	0.8×4.75	4.8	6.7	19			0.4	1000
	MDD1.25-250	0.8×6.35	6.35	7.7	21			0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MDD2-110(5)	0.5×2.8	2.8	6.5	18.5	10	4.7	0.5	1000
	MDD2-110(8)	0.8×2.8	2.8	6.5	18.5			0.4	1000
	MDD2-187(5)	0.5×4.75	4.8	6.5	19			0.5	1000
	MDD2-187(8)	0.8×4.75	4.8	6.7	19			0.4	1000
	MDD2-250	0.8×6.35	6.35	7.7	21			0.4	1000
12-10 A.W.G. 4-6 mm²	MDD5.5-250	0.8×6.35	6.35	7.7	24	13	6.2	0.4	500
