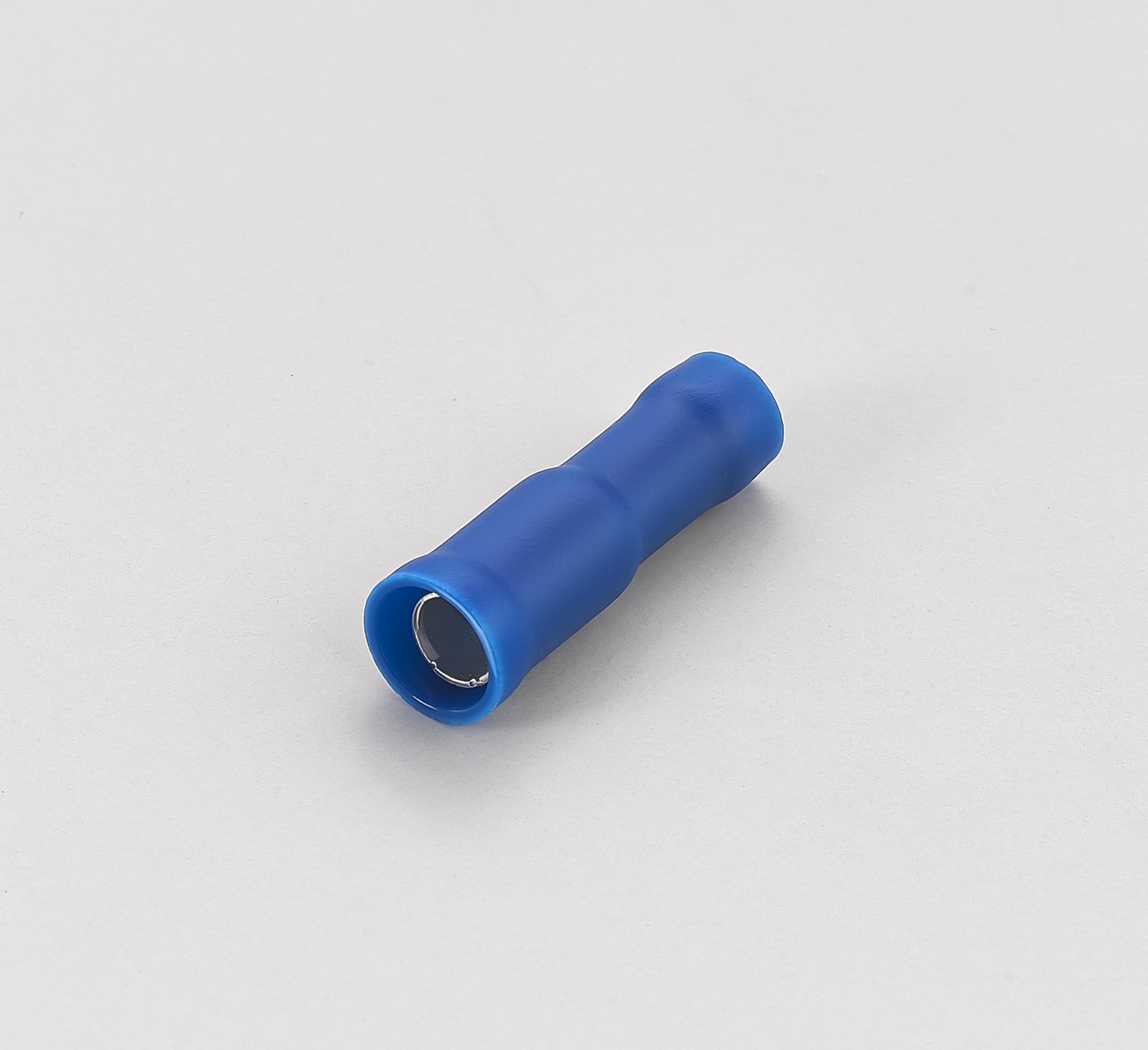

VINYL-INSULATED DOUBLE CRIMP BULLET DISCONNECTORS(MPD SERIES)

MPD Series vinyl-insulated double crimp female disconnectors with brass terminals, 600V/75°C rating, ensuring secure and durable crimp connections for industrial wiring systems.

MAXIMUM ELECTRICAL RATING: 75 ℃ 600 VOLTS MAX

INSULATION MATERIAL: VINYL

TERMINAL MATERIAL: BRASS

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

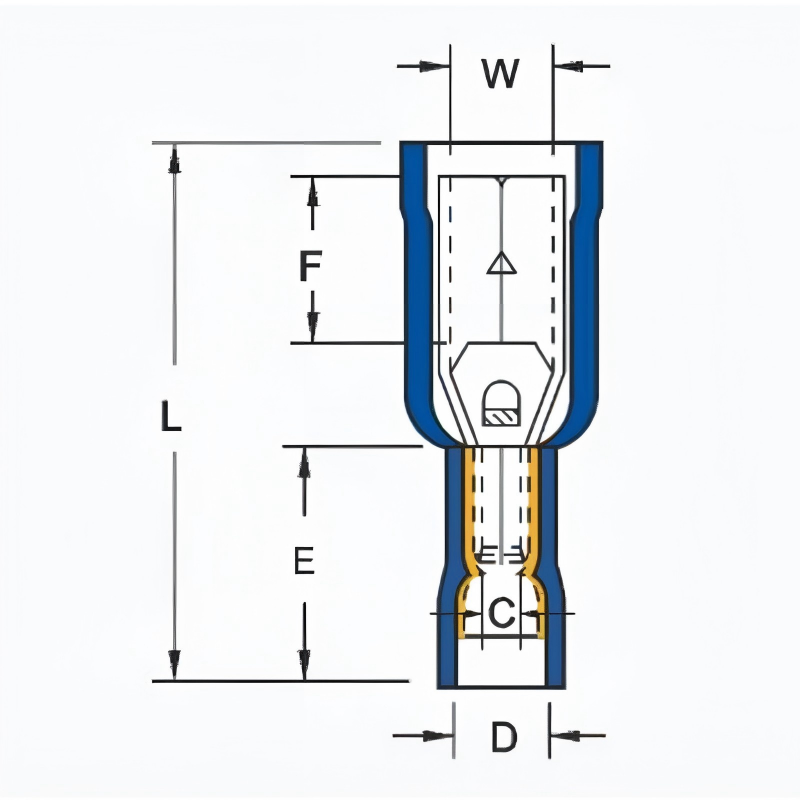

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MPD1.25-156	4	8.5	21	10	4	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MPD2-156	4	8.5	21	10	4.7	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MPD2-195	5	8.5	21	10	4.7	0.4	1000
12-10 A.W.G. 4-6 mm²	MPD5.5-195	5	8.5	23.5	13	6.2	0.4	500
