MPV

VINYL-INSULATED BULLET DISCONNECTORS(MPV SERIES)

MPV Series vinyl-insulated bullet disconnectors with brass terminals, 600V/75°C rating and crimp termination for secure, reliable industrial wiring.

MAXIMUM ELECTRICAL RATING: 75 ℃ 600 VOLTS MAX.
INSULATION MATERIAL: VINYL
TERMINAL MATERIAL: BRASS

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

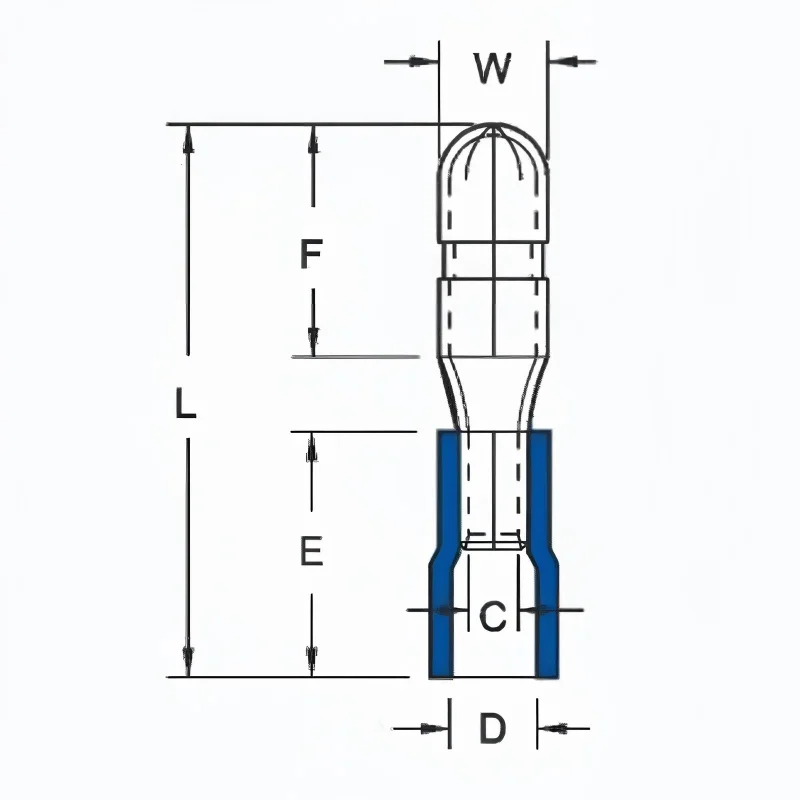

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MDV1.25-110(5)	0.5×2.8	2.8	6.5	18.5	10.0	3.5	0.5	1000
	MDV1.25-110(8)	0.8×2.8	2.8		18.5			0.4	1000
	MDV1.25-187(5)	0.5×4.75	4.8		19.0			0.5	1000
	MDV1.25-187(8)	0.8×4.75	4.8	6.7	19.0			0.4	1000
	MDV1.25-250	0.8×6.35	6.35	7.7	21.0			0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MDV2-110(5)	0.5×2.8	2.8	6.5	18.5	10.0	4.5	0.5	1000
	MDV2-110(8)	0.8×2.8	2.8	6.5	18.5				1000
	MDV2-187(5)	0.5×4.75	4.8	6.5	19.0				1000
	MDV2-187(8)	0.8×4.75	4.8	6.7	19.0			0.4	1000
	MDV2-250	0.8×6.35	6.35	7.7	21.0			0.4	1000
12-10 A.W.G. 4-6 mm²	MDV5-250	0.8×6.35	6.35	7.7	24.0	13.0	5.5	0.4	500
