VINYL-FULLY INSULATED RECEPTACLE DISCONNECTORS(FRV SERIES)

FRV Series vinyl fully insulated receptacle disconnectors with brass terminals, 600V/75°C rating and crimp design ensure safe, reliable industrial electrical connections.

MAXIMUM ELECTRICAL RATING: 75 ℃ 600 VOLTS MAX.

INSULATION MATERIAL: VINYL

TERMINAL MATERIAL: BRASS

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

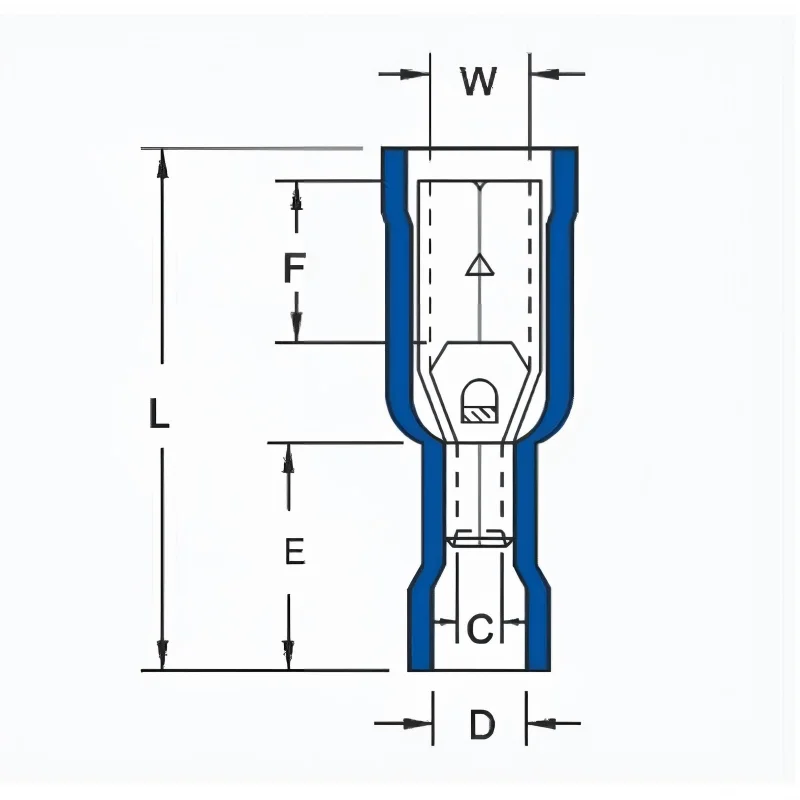

WIRE RANGE A.W.G. mm²	ITEM NO.	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	FRV1.25-156	3.9	7.0	23.0	10.5	3.5	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	FRV2-156	3.9	7.0	23.5	10.5	4.5	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	FRV2-195	4.9	7.0	24.5	10.5	4.5	0.4	1000
12-10 A.W.G. 4-6 mm²	FRV5.5-195	4.9	7.0	24.0	12.5	5.5	0.45	500
