VINYL-FULLY INSULATED FEMALE DISCONNECTORS(FDFV SERIES)

FDFV Series vinyl-insulated double crimp female disconnectors with brass terminals, 600V/75°C rating, ensuring secure and durable crimp connections for industrial wiring systems.

MAXIMUM ELECTRICAL RATING: 75 ℃ 600 VOLTS MAX

INSULATION MATERIAL: VINYL

TERMINAL MATERIAL: BRASS

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

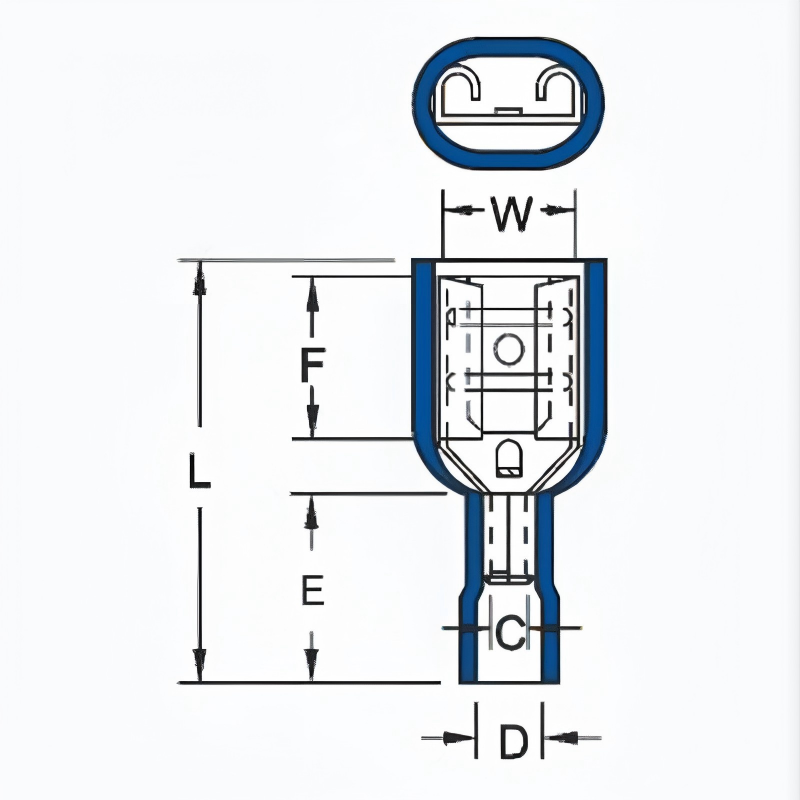

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G.0.5-1.5 mm²	FDFV1.25-110(5)	0.5×2.8	5	6.4	19.5	10	3.5	0.3	1000
	FDFV1.25-110(8)	0.8×2.8	5	6.4	19.5			0.3	1000
	FDFV1.25-187(5)	0.5×4.75	5	6.4	19.5			0.35	1000
	FDFV1.25-187(8)	0.8×4.75	5	6.4	19.5			0.35	1000
	FDFV1.25-250	0.8×6.35	6.6	7.5	22			0.4	1000
16-14 A.W.G.1.5-2.5 mm²	FDFV2-110(5)	0.5×2.8	3.2	6.5	18.6	10	4.5	0.3	1000
	FDFV2-110(8)	0.8×2.8	3.2	6.5	18.6			0.3	1000
	FDFV2-187(5)	0.5×4.75	5	6.4	19.3			0.35	1000
	FDFV2-187(8)	0.8×4.75	5	6.4	19.3			0.35	1000
	FDFV2-250	0.8×6.35	6.6	7.5	22			0.4	1000
12-10 A.W.G. 4-6 mm²	FDFV5.5-250	0.8×6.35	6.6	7.5	24.3	12.5	5.5	0.4	500
