NYLON-INSULATED DOUBLE CRIMP MALE DISCONNECTORS(MDNYD SERIES)

MDNYD Series nylon insulated double crimp male disconnectors feature brass terminals, 600V/105°C nylon insulation, and secure crimp connections for reliable industrial electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G.:YELLOW

TERMINAL BARREL I.D: 22-16A.W.G:C=1.7mm，16-14A.W.G:C=2.3mm,12-10A.W.G.:C=3.4mm

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

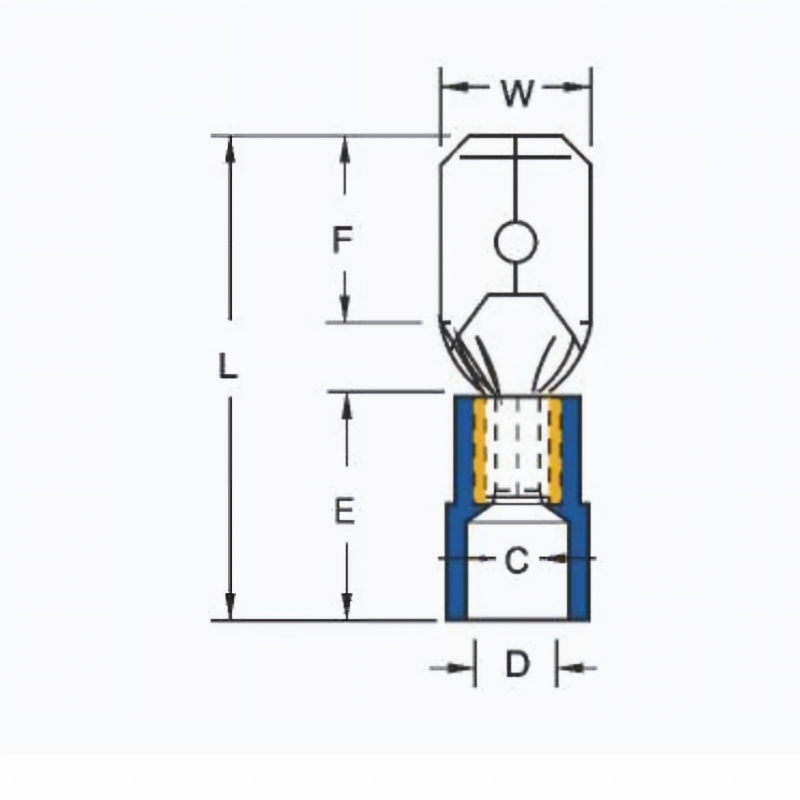

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION (inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MDNYD1.25-110(5)	0.5×2.8	2.8	6.5	18.5	10	4	0.5	1000
	MDNYD1.25-110(8)	0.8×2.8	2.8		18.5			0.4	1000
	MDNYD1.25-187(5)	0.5×4.75	4.8		19			0.5	1000
	MDNYD1.25-187(8)	0.8×4.75	4.8	6.7	19			0.4	1000
	MDNYD1.25-250	0.8×6.35	6.35	7.7	21			0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	MDNYD2-110(5)	0.5×2.8	2.8	6.5	18.5	10	5	0.5	1000
	MDNYD2-110(8)	0.8×2.8	2.8	6.5	18.5				1000
	MDNYD2-187(5)	0.5×4.75	4.8	6.5	19				1000
	MDNYD2-187(8)	0.8×4.75	4.8	6.7	19			0.4	1000
	MDNYD2-250	0.8×6.35	6.35	7.7	21			0.4	1000
12-10 A.W.G. 4-6 mm²	MDNYD5.5-250	0.8×6.35	6.35	7.7	24	13	6.5	0.4	500
