NYLON-INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS(FDNYD SERIES)

FDNYD Series nylon insulated double crimp female disconnectors feature brass terminals, 600V/105°C nylon insulation, and secure crimp connections for reliable industrial electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G.:YELLOW

TERMINAL BARREL I.D: 22-16A.W.G:C=1.7mm，16-14A.W.G:C=2.3mm,12-10A.W.G.:C=3.4mm

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

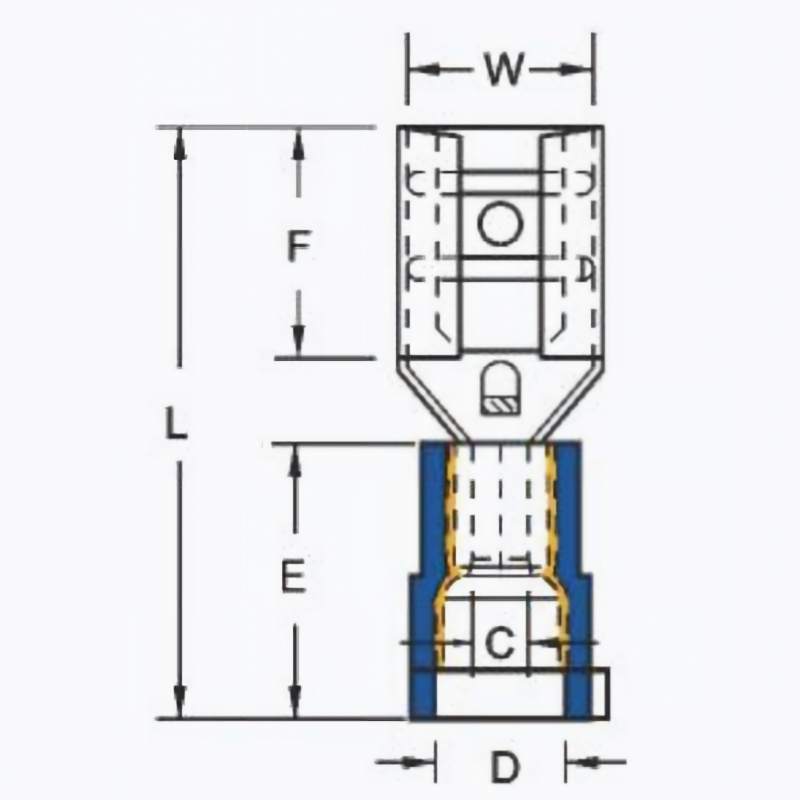

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	FDNYD1.25-110(5)	0.5×2.8	3.2	6.5	18.6	10	4	0.3	1000
	FDNYD1.25-110(8)	0.8×2.8	3.2	6.5	18.6			0.3	1000
	FDNYD1.25-187(5)	0.5×4.75	5	6.4	19			0.35	1000
	FDNYD1.25-187(8)	0.8×4.75	5	6.4	19				1000
	FDNYD1.25-205(5)	0.5×5.2	5.7	5.8	18.5				1000
	FDNYD1.25-205(8)	0.8×5.2	5.7	5.8	18.5				1000
	FDNYD1.25-250	0.8×6.35	6.6	7.5	20.5			0.4	1000
	FDNYD1.25-312	0.8×8.0	8.2	10	24.2			0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	FDNYD2-110(5)	0.5×2.8	3.2	6.5	18.6	10	5	0.3	1000
	FDNYD2-110(8)	0.8×2.8	3.2	6.5	18.6			0.3	1000
	FDNYD2-187(5)	0.5×4.75	5	6.4	19			0.35	1000
	FDNYD2-187(8)	0.8×4.75	5	6.4	19				1000
	FDNYD2-205(5)	0.8×5.2	5.7	5.8	18.5				1000
	FDNYD2-205(8)	0.8×5.2	5.7	5.8	18.5				1000
	FDNYD2-250	0.8×6.35	6.6	7.5	20.5			0.4	1000
	FDNYD2-312	0.8×8.0	8.2	10	24.2			0.4	1000
	FDNYD2-375	1.2×9.4	10	12	25.5			0.5	1000
12-10 A.W.G. 4-6 mm²	FDNYD5.5-250	0.8×6.35	6.6	7.5	23.5	13	6.5	0.4	500
12-10 A.W.G. 4-6 mm²	FDNYD5.5-375	1.2×9.4	10	12	28.5	13	6.5	0.5	500
