MDFNY A SERIES

NYLON-FULLY INSULATED(EASY ENTRY) MALE DISCONNECTORS-A TYPE(MDFNY-A SERIES)

MDFNY-A Series nylon fully insulated easy entry male disconnectors feature brass terminals, 600V/105°C nylon insulation, and secure crimp connections for reliable industrial electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.
INSULATION MATERIAL: NYLON
INSULATION COLOR: 22-18A.W.G.：RED，16-14A.W.G.：BLUE
TERMINAL BARREL I.D: 22-18A.W.G.：1.7mm，16-14A.W.G.：2.3mm

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2
MAX CURRENT	10	15

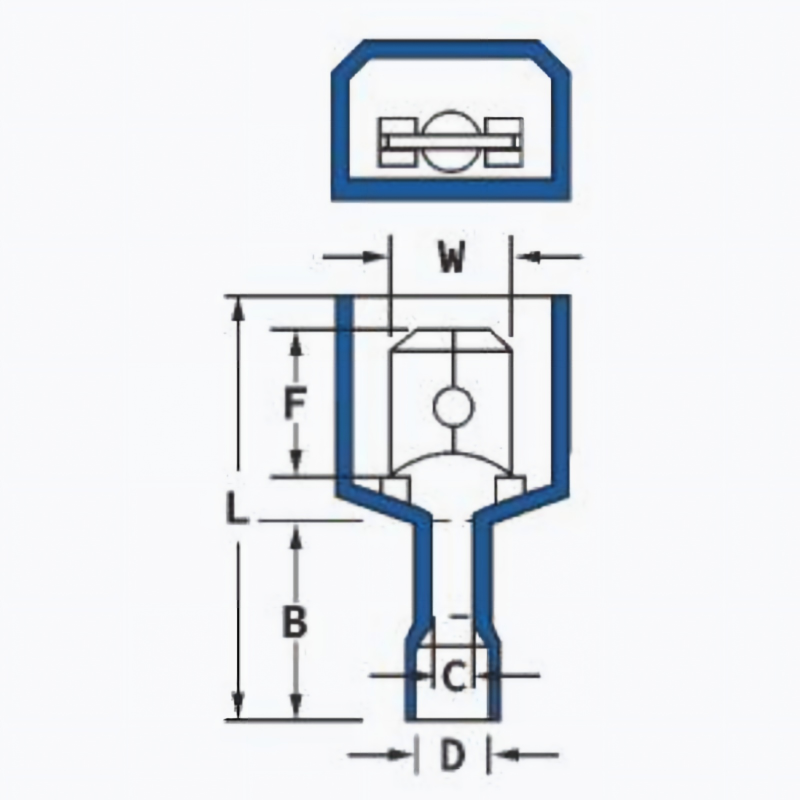

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	B	D	T	Q’TY
22-18A.W.G. 0.5-0.75 mm²	MDFNY1.25-250A	0.8×6.35	6.35	7.9	22	10	3.6	0.4	500
16-14 A.W.G. 1.5-2.5 mm²	MDFNY2-250A	0.8×6.35	6.35	7.9	22	10	4.2	0.4	500
