NYLON-FULLY INSULATED(EASY ENTRY) FEMALE DISCONNECTORS-A TYPE(FDFNY-A SERIES)

FDFNY-A Series nylon fully insulated easy entry female disconnectors feature brass terminals, 600V/105°C nylon insulation, and secure crimp connections for reliable industrial electrical wiring.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 26-22A.W.G.：VIOLET，22-18A.W.G.：RED，16-14A.W.G.：BLUE

TERMINAL BARREL I.D: 26-22A.W.G.：0.8mm，22-18A.W.G.：1.6mm，16-14A.W.G.：2.3mm

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	0.5	1.25	2
MAX CURRENT	8	10	15

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY

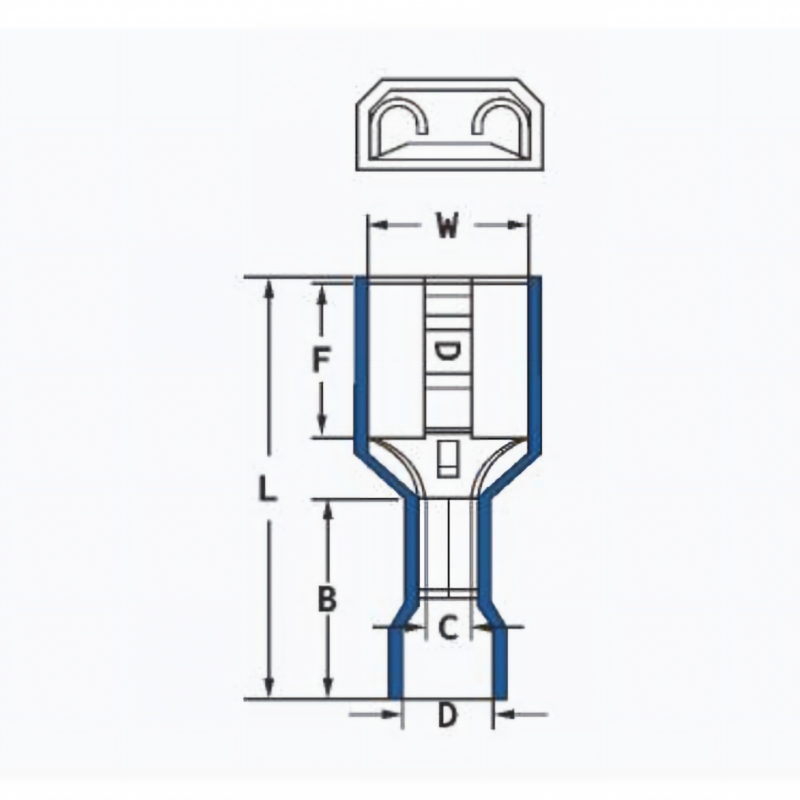

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	B	D	T	Q’TY
26-22 A.W.G. 0.2-0.5 mm²	FDFNY0.5-110(5)A	0.5×2.8	3.2	6.5	18	8.8	2.6	0.3	1000
	FDFNY0.5-110(8)A	0.8×2.8	3.2	6.5	18	8.8	2.6	0.3	1000
	FDFNY0.5-187(5)A	0.5×4.75	5	6.4	20.6	8.8	2.6	0.3	1000
	FDFNY0.5-187(8)A	0.8×4.75	5	6.4	20.6	8.8	2.6	0.3	1000
22-18 A.W.G. 0.5-0.75 mm²	FDFNY1.25-110(5)A	0.5×2.8	3.2	6.4	18	8.8	3.2	0.3	1000
	FDFNY1.25-110(8)A	0.8×2.8	3.2	6.4	18	8.8	3.2	0.3	1000
	FDFNY1.25-187(5)A	0.5×4.75	5	6.4	21	10	3.7	0.35	1000
	FDFNY1.25-187(8)A	0.8×4.75	5	6.4	21	10	3.7	0.35	1000
	FDFNY1.25-250A	0.8×6.35	6.6	7.6	21	10	3.7	0.4	1000
16-14 A.W.G. 1.5-2.5 mm²	FDFNY2-110(5)A	0.5×2.8	3.2	6.4	19	9.8	4.4	0.3	1000
	FDFNY2-110(8)A	0.8×2.8	3.2	6.4	19	9.8	4.4	0.3	1000
	FDFNY2-187(5)A	0.5×4.75	5	6.4	21	10	4.4	0.35	1000
	FDFNY2-187(8)A	0.8×4.75	5	6.4	21	10	4.4	0.35	1000
	FDFNY2-250A	0.8×6.35	6.6	7.6	21	10	4.4	0.4	1000
