NYLON-FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORS(MDFNYD SERIES)

MDFNYD Series nylon fully insulated double crimp male disconnectors feature brass terminals, 600V/105°C insulation for secure and reliable industrial wiring connections.

MAXIMUM ELECTRICAL RATING: 105℃600 VOLTS MAX.

INSULATION MATERIAL: NYLON

INSULATION COLOR: 22-16A.W.G.:RED,16-14A.W.G.:BLUE，12-10A.W.G.:YELLOW

TERMINAL BARREL I.D: 22-16A.W.G:C=1.7mm，16-14A.W.G:C=2.3mm,12-10A.W.G.:C=3.4mm

Description

MAXIMUM ELECTRIC CURRENT:

SPEC	1.25	2	5.5
MAX CURRENT	10	15	24

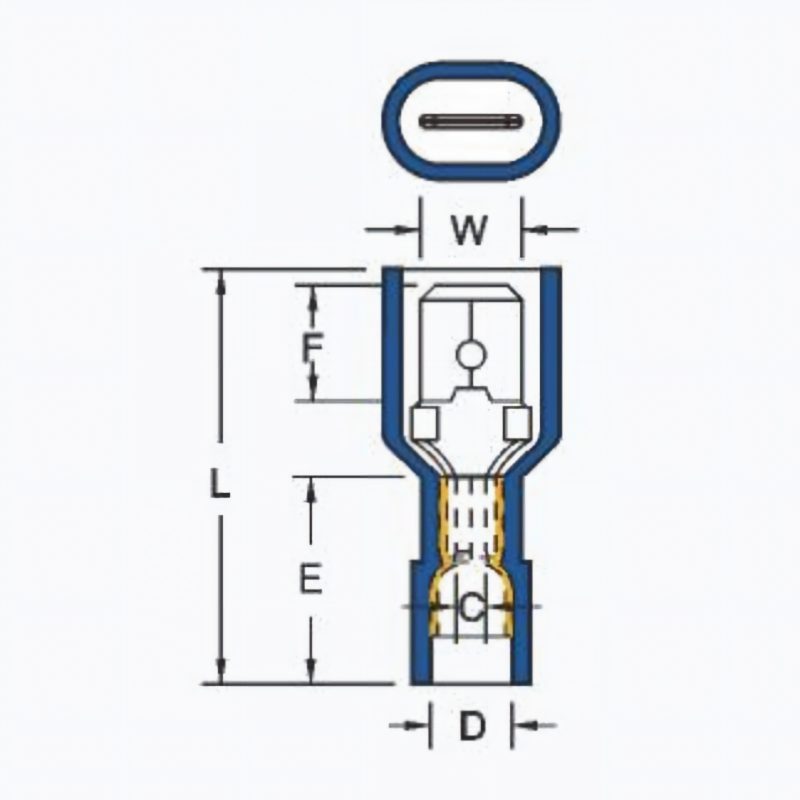

WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	DIMENSION(inch mm)						Q’TY
WIRE RANGE A.W.G. mm²	ITEM NO.	NEMA TAB	W	F	L	E	D	T	Q’TY
22-16 A.W.G. 0.5-1.5 mm²	MDFNYD1.25-250	0.8×6.35	6.35	7.7	24	11	4	0.4	500
16-14 A.W.G. 1.5-2.5 mm²	MDFNYD2-250		6.35	7.7	24	11	5	0.4	500
12-10 A.W,G. 4-6 mm²	MDFNYD5.5-250		6.35	7.7	25	13	6.5	0.4	500
